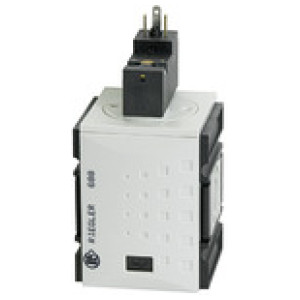

3/2 ventil »FUTURA«, Elektr. voden, 24 V DC, Velikost 4, G 3/4
SKU: 100298RIE
EAN: 4047322246545

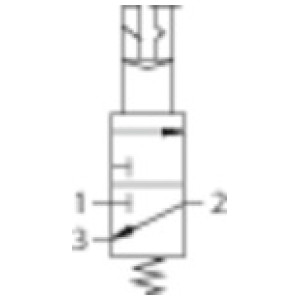

3/2-way valve »FUTURA«, electr. actuated with solenoid 24 V DC, 2.5 watt, Size 4, G 3/4, Exhaust G 1/2, Input pressure 2 - 10 bar
Pneumatic systems or parts of systems can be switched on and off by means of an electrical signal.
3/2-way type including silencer.
When they are switched off, the system is exhausted at the same time.
Obrestno financiranje
- 13,83 € x 24 mesecev
- 26,48 € x 12 mesecev
- 51,80 € x 6 mesecev
- 102,46 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Izpušni zrak | Navoj | Priključni navoj | Velikost | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|
100297RIE | G 1/2 | G 1/2 | Material: Die-cast zinc | 2 | 63.0 | 93.8 | 150.3 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 136,30 € | ||
100294RIE | G 1/4 | G 1/4 | G 1/4 (NPTF option) | 1 | 52.0 | 84.8 | 117.8 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 127,93 € | ||
100296RIE | G 1/2 | G 3/8 | Material: Die-cast zinc | 2 | 63.0 | 93.8 | 150.3 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 136,30 € | ||
100299RIE | G 1/2 | G 1 | Material: Die-cast zinc | 4 | 85.0 | 110.7 | 177.7 | 12500 | Čas dobave: Predvidoma 3 - 5 dni | 282,98 € | ||
100295RIE | G 1/4 | G 3/8 | Material: Die-cast zinc | 1 | 52.0 | 84.8 | 117.8 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 127,93 € | ||
100298RIE | G 1/2 | G 3/4 | Material: Die-cast zinc | 4 | 85.0 | 110.7 | 177.7 | 12500 | Čas dobave: Predvidoma 3 - 5 dni | 282,98 € |
Opis
3/2-way valve »FUTURA«, electr. actuated with solenoid 24 V DC, 2.5 watt, Size 4, G 3/4, Exhaust G 1/2, Input pressure 2 - 10 bar
Pneumatic systems or parts of systems can be switched on and off by means of an electrical signal.
3/2-way type including silencer.
When they are switched off, the system is exhausted at the same time.
Tehnični podatki in specifikacije
Navoj | G 3/4 |
Max. vhodni tlak [bar] | 10 |
Velikost | 4 |
Min. vhodni tlak [bar] | 2 |
Min. temperaturno območje [°C] | -10 |
Max. temperaturno območje [°C] | 50 |
Ohišje | PA66 GF60 |
Priključni navoj | Material: Die-cast zinc |
Vhodna moč | 2.5 Watt with DC voltage |
Dvižna moč pri 50 Hz AC napetosti [VA] | 2.2 |
Zaklepna moč pri 50 Hz AC napetosti [VA] | 1.6 |
Pretok [l/min] | 12500 |
Izpušni zrak | G 1/2 |

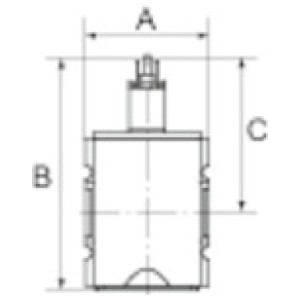

A [mm] | 85.0 |
B [mm] | 177.7 |
C [mm] | 110.7 |
Serija | FUTURA |
Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
Srednje | Compressed air, neutral gases |
Delovni cikel [%] | 100 |
IP zaščita | IP 65 |
Električni priključek | Socket coupling EN 175301-803, form C, poles 2+PE |
