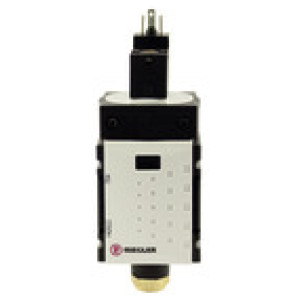

3/2 ventil »FUTURA-mali«, Elektr. voden, 115 V AC, G 1/4
SKU: 142523RIE
EAN: 4047322557481

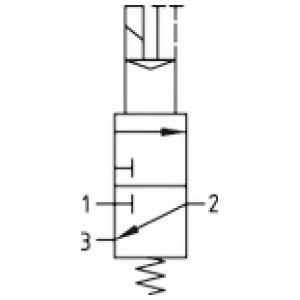

3/2-way valve »FUTURA-mini«, electr. actuated with solenoid 115 V AC, 50 Hz, Size 0, G 1/4, Exhaust G 1/4, Input press. 2.5-10 bar
Pneumatic systems or parts of systems can be switched on and off by means of an electrical signal.
3/2-way type including silencer.
When they are switched off, the system is exhausted at the same time.
Obrestno financiranje
- 11,32 € x 12 mesecev
- 22,15 € x 6 mesecev
- 43,81 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 142523RIE | Čas dobave: Predvidoma 3 - 5 dni | 120,87 € |  |
Opis
3/2-way valve »FUTURA-mini«, electr. actuated with solenoid 115 V AC, 50 Hz, Size 0, G 1/4, Exhaust G 1/4, Input press. 2.5-10 bar
Pneumatic systems or parts of systems can be switched on and off by means of an electrical signal.
3/2-way type including silencer.
When they are switched off, the system is exhausted at the same time.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 10 |
| Min. vhodni tlak [bar] | 2.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Plastic |
| Vhodna moč | 2.5 Watt with DC voltage |
| Dvižna moč pri 50 Hz AC napetosti [VA] | 2.2 |
| Zaklepna moč pri 50 Hz AC napetosti [VA] | 1.6 |
| Pretok [l/min] | 2000 |
| Izpušni zrak | G 1/4 |

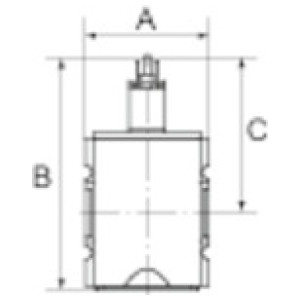

| A [mm] | 43.0 |
| B [mm] | 138.0 |
| C [mm] | 93.0 |
| Serija | FUTURA-mini |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
| Srednje | Compressed air, neutral gases |
| Delovni cikel [%] | 100 |
| IP zaščita | IP 65 |
| Električni priključek | Socket coupling EN 175301-803, form C, poles 2+PE |
