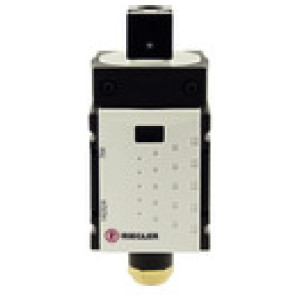

3/2 ventil »FUTURA-mali«, pnevmatsko voden, Velikost 0 G 1/4

SKU: 142524RIE
EAN: 4047322557498

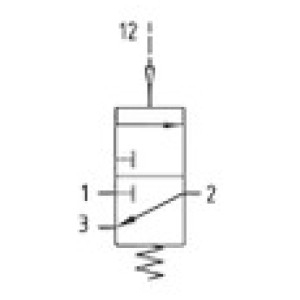

3/2-way valve »FUTURA-mini«, pneumatically actuated, Size 0, G 1/4, Exhaust G 1/4, Input pressure max. 12 bar, Temp. -10°C to 50°C

Pneumatic systems or parts of systems can be switched on and off by means of an pneumatic signal.

3/2-way type including silencer.

When they are switched off, the system is exhausted at the same time.

Čas dobave: Predvidoma 3 - 5 dni
74,98 €
ali od 13,73 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 13,73 € x 6 mesecev
  • 27,16 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Zaloga Cena Nakup Natisni
142524RIE
Čas dobave: Predvidoma 3 - 5 dni
74,98 € Natisni

Opis

3/2-way valve »FUTURA-mini«, pneumatically actuated, Size 0, G 1/4, Exhaust G 1/4, Input pressure max. 12 bar, Temp. -10°C to 50°C

Pneumatic systems or parts of systems can be switched on and off by means of an pneumatic signal.

3/2-way type including silencer.

When they are switched off, the system is exhausted at the same time.

Tehnični podatki in specifikacije

Navoj G 1/4
Max. vhodni tlak [bar] 12
Min. temperaturno območje [°C] -10
Max. temperaturno območje [°C] 50
Ohišje PA66 GF60
Priključni navoj Plastic
Povezava vodenega zračnega tlaka G 1/8
Pretok [l/min] 2000
Izpušni zrak G 1/4

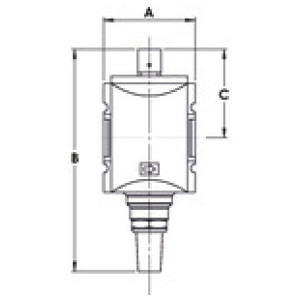

A [mm] 43.0
B [mm] 105.0
C [mm] 60.0
Serija FUTURA-mini
Srednje Compressed air, neutral gases
Merjenje pretoka At P2 = 6 bar and pressure drop Δp = 1 bar
