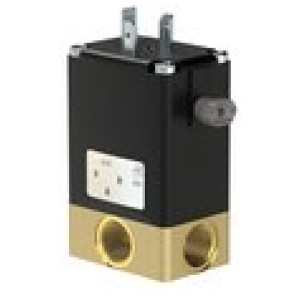

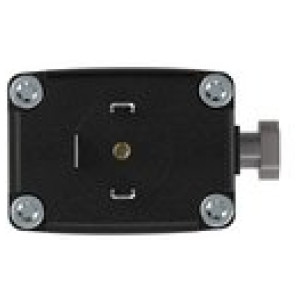

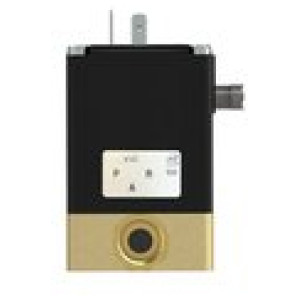

3/2-way solenoid valve, NC, G 1/4, PN 0-5, NBR, 24V AC

SKU: 125810RIE
EAN: 4047322726993

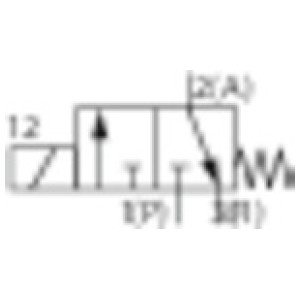

Media-separated 3/2-way solenoid valve, NC, brass, G 1/4, PN 0-5, direct. opera., 24V AC, Med.temp. 0 to 80, Ambient temp. 0 to 55

Media-separated solenoid valves are an important component in the control of fluids in systems. With these direct or pilot operated values only the fluid housing and the separating diaphragm come into contact with the medium.

Thus, these valves can withstand many different media (see resistance chart). In addition, the brass housing meets all the conventional potable water requirements. The direct controlled valve in the 3/2-way design can be used either as a mixing valve or for any desired flow direction.
The pilot operated valve is normally closed in the basic position. By simply turning the 3/2-way pilot valve, the basic position can be changed to normally open.

Ni na zalogi
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra DN Max. obratovalni tlak [bar] Napetost Zaloga Cena Nakup Natisni
125804RIE 4 5 110V AC
Ni na zalogi
? Povpraševanje Natisni
125809RIE 3 10 24V AC
Ni na zalogi
? Povpraševanje Natisni
125803RIE 3 10 110V AC
Ni na zalogi
? Povpraševanje Natisni
125808RIE 4 5 230V AC
Ni na zalogi
? Povpraševanje Natisni
125807RIE 3 10 230V AC
Ni na zalogi
? Povpraševanje Natisni
125810RIE 4 5 24V AC
Ni na zalogi
? Povpraševanje Natisni

Opis

Media-separated 3/2-way solenoid valve, NC, brass, G 1/4, PN 0-5, direct. opera., 24V AC, Med.temp. 0 to 80, Ambient temp. 0 to 55

Media-separated solenoid valves are an important component in the control of fluids in systems. With these direct or pilot operated values only the fluid housing and the separating diaphragm come into contact with the medium.

Thus, these valves can withstand many different media (see resistance chart). In addition, the brass housing meets all the conventional potable water requirements. The direct controlled valve in the 3/2-way design can be used either as a mixing valve or for any desired flow direction.
The pilot operated valve is normally closed in the basic position. By simply turning the 3/2-way pilot valve, the basic position can be changed to normally open.

Tehnični podatki in specifikacije

IP zaščita IP65 (with connector socket fitted)
Max. obratovalni tlak [bar] 5
Električni priključek Pin terminal acc. to DIN EN 175301-803
Ohišje Brass
Sedež ventila Brass
Notranji deli Brass
Tesnilo NBR
Max. sobna temperatura [°C] 55
Max. temperatura medija [°C] 80
Navoj G 1/4
Ffunkcija normally closed (NC)
DN 4

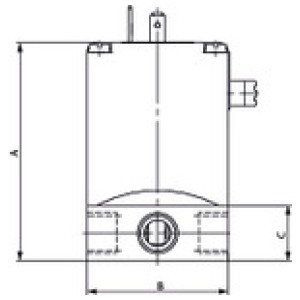

A [mm] 71.0
B [mm] 46.0
Napetost 24V AC
C [mm] 18.0
