3/3 priklj. za cev G3/4x13 vrtlj. mat.konusNBR O-R lahka
SKU: 146207RIE
EAN: 4047322581011

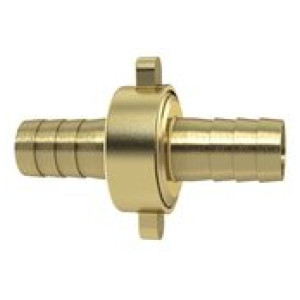

3/3 Tube fitting, G 3/4 x 13 mm, swivel nut, taper seat, with NBR O-ring, lightweight type, Brass with a bare metal surface
Čas dobave: Predvidoma 3 - 5 dni
4,71 €

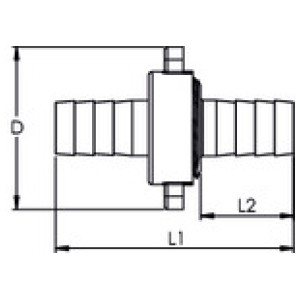

Šifra | Navoj | Za cevi [mm] | L2 [mm] | D [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
146208RIE | G 1 | 19 | 27.0 | 50.4 | 66.5 | Čas dobave: Predvidoma 3 - 5 dni | 7,32 € | ||
146209RIE | G 1 1/4 | 25 | 30.0 | 63.4 | 75.4 | Čas dobave: Predvidoma 3 - 5 dni | 12,43 € | ||
146207RIE | G 3/4 | 13 | 24.0 | 41.3 | 61.1 | Čas dobave: Predvidoma 3 - 5 dni | 4,71 € |
Opis
3/3 Tube fitting, G 3/4 x 13 mm, swivel nut, taper seat, with NBR O-ring, lightweight type, Brass with a bare metal surface
Tehnični podatki in specifikacije
Max. obratovalni tlak [bar] | 16 |
Min. delovna temperatura [°C] | -10 |
Max. delovna temperatura [°C] | 80 |
Navoj | G 3/4 |
Za cevi [mm] | 13 |
L1 [mm] | 61.1 |
L2 [mm] | 24.0 |
Material | Brass CW614N |
D [mm] | 41.3 |
