* slike so simbolične

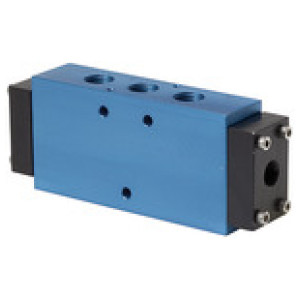

5/2-pot.vent., obojestr. pnevm., bistabilen, G 1/2, DN 15
SKU: 106603RIE
EAN: 4047322278676
5/2-way valve, Both sides pneumatic, bistable, G 1/2, DN 15, Operating pre. 2.5 to 10 bar, Operating temp. -10 °C to 60 °C
This valve design, featuring the Tapered Tee Seal®, offers the ability to run without lubrication and supports almost any compressed air quality.
The valves are largely resistant to dirt and can thus also be used under extreme conditions without any problems.
Leakage is now a thing of the past and the spool no longer sticks, even after long idle periods.
Povpraševanje
Električni priključek: Coupler plug PG 9, form B
IP zaščita: IP 65 (DIN 46244)
Merjenje pretoka 1: Flow rate at 6 bar and ?p 1.0 bar
Ohišje: Anodised aluminium, blue
Povezava: G 1/2
Ročno upravljanje: non-latching
Tuljava: Stainless steel
| Šifra | Povezava | DN | Pretok 1 [Nl/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 106602RIE | G 1/4 | 7.5 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 106603RIE | G 1/2 | 15 | 4600 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
5/2-way valve, Both sides pneumatic, bistable, G 1/2, DN 15, Operating pre. 2.5 to 10 bar, Operating temp. -10 °C to 60 °C
This valve design, featuring the Tapered Tee Seal®, offers the ability to run without lubrication and supports almost any compressed air quality.
The valves are largely resistant to dirt and can thus also be used under extreme conditions without any problems.
Leakage is now a thing of the past and the spool no longer sticks, even after long idle periods.
Tehnični podatki in specifikacije
| Min. obratovalni tlak [bar] | 2.5 |
| Max. obratovalni tlak [bar] | 10 |
| Min. vodeni tlak [bar] | 2.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 60 |
| Merjenje pretoka 1 | Flow rate at 6 bar and ?p 1.0 bar |
| Tesnilo | NBR |
| Električni priključek | Coupler plug PG 9, form B |
| IP zaščita | IP 65 (DIN 46244) |
| Ohišje | Anodised aluminium, blue |
| Tuljava | Stainless steel |
| Povezava | G 1/2 |
| Ročno upravljanje | non-latching |
| Ffunkcija | 5/2 |
| Delovanje | Bistable |
| Pretok 1 [Nl/min] | 4600 |
| DN | 15 |
| Simbol | 28 |
