* slike so simbolične
ALI ventil, 3 x G 1/8 Aluminij
SKU: 106703RIE
EAN: Z327003800

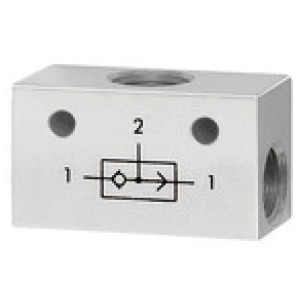

OR valve, 3 x G 1/8, Operating pressure 2 - 10 bar, Temperature range -10 °C to 80 °C, Aluminium

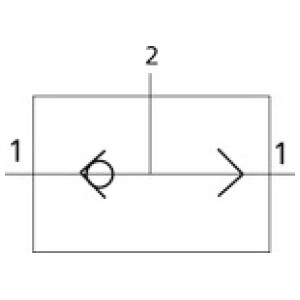

The valve has two inlets and one outlet. A signal appears at the outlet when the left or right inlet is pressurised. If the pressure at the two inlets is different, the stronger of the two signals appears at the outlet.
Čas dobave: Predvidoma 3 - 5 dni
21,28 €

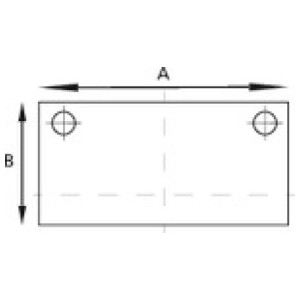

| Šifra | Navoj | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 106703RIE | 3 x G 1/8 | 20.0 | 36.0 | Čas dobave: Predvidoma 3 - 5 dni | 21,28 € |  | |
| 106704RIE | 3 x G 1/4 | 25.0 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 22,37 € | |
Opis
OR valve, 3 x G 1/8, Operating pressure 2 - 10 bar, Temperature range -10 °C to 80 °C, Aluminium
The valve has two inlets and one outlet. A signal appears at the outlet when the left or right inlet is pressurised. If the pressure at the two inlets is different, the stronger of the two signals appears at the outlet.
Tehnični podatki in specifikacije
| Tesnilo | NBR |
| Telo ventila | Aluminium |
| Krogla | Stainless steel |
| Navoj | 3 x G 1/8 |
| A [mm] | 36.0 |
| B [mm] | 20.0 |
