* slike so simbolične
Ball valve standard type, IT/IT, nickel-plated brass, G 1
SKU: 129144RIE
EAN: 4047322727990
Ball valve, Butterfly handle black, Standard type, IT/IT, nickel-plated brass, Operating temp. -20 bis 150 °C, G 1, PN max. 40 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems and air conditioning systems.
Ni na zalogi
Povpraševanje
Ball valve standard type, IT/IT, nickel-plated brass, G 1
Delovna temperatura: -20 °C to 150 °C (no steam)
Krogla: Chrome-plated brass
Material: Nickel-plated brass
Material navojev: Bright brass
Ročica - metuljček: Aluminium, painted black
Standardni navoj: G-thread acc. to DIN EN ISO 228-1, tolerance class B
Stebelno tesnilo: NBR / FKM (Seal package consists of 2 O-rings)
Krogla: Chrome-plated brass
Material: Nickel-plated brass
Material navojev: Bright brass
Ročica - metuljček: Aluminium, painted black
Standardni navoj: G-thread acc. to DIN EN ISO 228-1, tolerance class B
Stebelno tesnilo: NBR / FKM (Seal package consists of 2 O-rings)

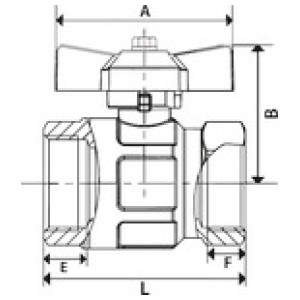

| Šifra | Navoj | F [mm] | E [mm] | DN | B [mm] | A [mm] | PN [bar] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 129142RIE | G 1/2 | 12.0 | 12.5 | 15 | 41.0 | 47.0 | 50 | 50.5 | Ni na zalogi | ? | Povpraševanje |  |
| 129141RIE | G 3/8 | 10.0 | 10.0 | 10 | 37.0 | 47.0 | 50 | 44.4 | Ni na zalogi | ? | Povpraševanje | |
| 129145RIE | G 1 1/4 | 17.0 | 16.5 | 32 | 75.0 | 70.0 | 30 | 80.5 | Ni na zalogi | ? | Povpraševanje | |
| 129140RIE | G 1/4 | 10.0 | 10.0 | 8 | 37.0 | 47.0 | 50 | 44.4 | Ni na zalogi | ? | Povpraševanje | |
| 129143RIE | G 3/4 | 12.5 | 13.5 | 20 | 55.0 | 62.0 | 40 | 57.5 | Ni na zalogi | ? | Povpraševanje | |
| 129144RIE | G 1 | 15.0 | 15.0 | 25 | 59.0 | 62.0 | 40 | 70.0 | Ni na zalogi | ? | Povpraševanje | |
Opis
Ball valve, Butterfly handle black, Standard type, IT/IT, nickel-plated brass, Operating temp. -20 bis 150 °C, G 1, PN max. 40 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems and air conditioning systems.
Tehnični podatki in specifikacije
| Material | Nickel-plated brass |
| Navoj | G 1 |
| Krogla | Chrome-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | NBR / FKM (Seal package consists of 2 O-rings) |
| PN [bar] | 40 |
| Delovna temperatura | -20 °C to 150 °C (no steam) |
| Ročica - metuljček | Aluminium, painted black |
| Standardni navoj | G-thread acc. to DIN EN ISO 228-1, tolerance class B |
| Material navojev | Bright brass |
| DN | 25 |
| L [mm] | 70.0 |
| A [mm] | 62.0 |
| B [mm] | 59.0 |
| E [mm] | 15.0 |
| F [mm] | 15.0 |
