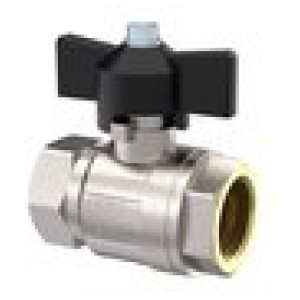

Ball valve standard type, IT/IT, nickel-plated brass, G 1/4

SKU: 129140RIE
EAN: 4047322727976

Ball valve, Butterfly handle black, Standard type, IT/IT, nickel-plated brass, Operat. temp. -20 bis 150 °C, G 1/4, PN max. 50 bar

Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems and air conditioning systems.

Ni na zalogi
Pošljite povpraševanje
Primerjaj z ostalimi

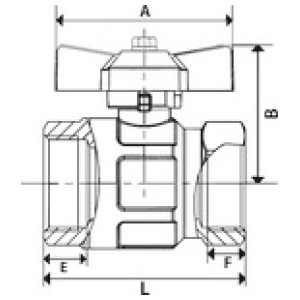

Šifra Navoj F [mm] E [mm] DN B [mm] A [mm] PN [bar] L [mm] Zaloga Cena Nakup Natisni
129142RIE G 1/2 12.0 12.5 15 41.0 47.0 50 50.5
Ni na zalogi
? Povpraševanje Natisni
129141RIE G 3/8 10.0 10.0 10 37.0 47.0 50 44.4
Ni na zalogi
? Povpraševanje Natisni
129145RIE G 1 1/4 17.0 16.5 32 75.0 70.0 30 80.5
Ni na zalogi
? Povpraševanje Natisni
129140RIE G 1/4 10.0 10.0 8 37.0 47.0 50 44.4
Ni na zalogi
? Povpraševanje Natisni
129143RIE G 3/4 12.5 13.5 20 55.0 62.0 40 57.5
Ni na zalogi
? Povpraševanje Natisni
129144RIE G 1 15.0 15.0 25 59.0 62.0 40 70.0
Ni na zalogi
? Povpraševanje Natisni

Opis

Ball valve, Butterfly handle black, Standard type, IT/IT, nickel-plated brass, Operat. temp. -20 bis 150 °C, G 1/4, PN max. 50 bar

Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems and air conditioning systems.

Tehnični podatki in specifikacije

Material Nickel-plated brass
Navoj G 1/4
Krogla Chrome-plated brass
Krogelno tesnilo PTFE
Stebelno tesnilo NBR / FKM (Seal package consists of 2 O-rings)
PN [bar] 50
Delovna temperatura -20 °C to 150 °C (no steam)
Ročica - metuljček Aluminium, painted black
Standardni navoj G-thread acc. to DIN EN ISO 228-1, tolerance class B
Material navojev Bright brass
DN 8
L [mm] 44.4
A [mm] 47.0
B [mm] 37.0
E [mm] 10.0
F [mm] 10.0
