* slike so simbolične

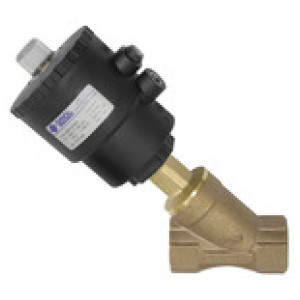

Batni kotni ventil, NC, bronasti, G 1 1/4
SKU: 133202RIE
EAN: 4047322476935
Angle seat valve, Piston drive without NAMUR interface, Bronze, Medium temp. -10°C to 180°C, G 1 1/4, Pressure differ. max 14 bar
Angle-seat valves with external pilot control and a self-aligning valve disc for neutral (bronze body) or corrosive (stainless steel body) media.
- Very high flow due to angled seat design
- Water hammer prevented by fluid entry under the disc
- Suitable for vacuum operation (low vacuum)
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Batni kotni ventil, NC, bronasti, G 1 1/4
Bat: Nickel-plated brass
Nadzor zraka: G 1/8
Navoj: G 1 1/4
Ohišje: Bronze
Operater: Polyamide (glass fibre-reinforced)
Priključki: Stainless steel
Steblo: Stainless steel
F [mm]: 110.0
C [mm]: 245.0
A [mm]: 255.0
Nadzor zraka: G 1/8
Navoj: G 1 1/4
Ohišje: Bronze
Operater: Polyamide (glass fibre-reinforced)
Priključki: Stainless steel
Steblo: Stainless steel
F [mm]: 110.0
C [mm]: 245.0
A [mm]: 255.0
| Šifra | Bat | Navoj | Max. vodeni tlak [bar] | Max. razlika v delovnem tlaku [bar] | F [mm] | C [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 133201RIE | Nickel-plated brass | G 1 | 8 | 16 | 90.0 | 236.0 | 246.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 133204RIE | PBT + GF 30 % | G 1 1/2 | 8 | 16 | 120.0 | 300.0 | 306.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 133200RIE | Nickel-plated brass | G 1 | 10 | 11 | 90.0 | 196.0 | 206.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 133198RIE | Nickel-plated brass | G 3/4 | 10 | 10 | 75.0 | 163.0 | 173.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 133205RIE | PBT + GF 30 % | G 2 | 8 | 10 | 150.0 | 311.0 | 316.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 133197RIE | Nickel-plated brass | G 1/2 | 10 | 16 | 65.0 | 153.0 | 163.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 133203RIE | PBT + GF 30 % | G 1 1/2 | 8 | 11 | 120.0 | 264.0 | 270.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 133199RIE | Nickel-plated brass | G 3/4 | 10 | 16 | 75.0 | 181.0 | 191.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 133202RIE | Nickel-plated brass | G 1 1/4 | 8 | 14 | 110.0 | 245.0 | 255.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Angle seat valve, Piston drive without NAMUR interface, Bronze, Medium temp. -10°C to 180°C, G 1 1/4, Pressure differ. max 14 bar
Angle-seat valves with external pilot control and a self-aligning valve disc for neutral (bronze body) or corrosive (stainless steel body) media.
- Very high flow due to angled seat design
- Water hammer prevented by fluid entry under the disc
- Suitable for vacuum operation (low vacuum)
Tehnični podatki in specifikacije
| Ohišje | Bronze |
| Navoj | G 1 1/4 |
| Steblo | Stainless steel |
| Tesnilo | PTFE |
| Operater | Polyamide (glass fibre-reinforced) |
| Nadzor zraka | G 1/8 |
| Min. vodeni tlak [bar] | 4 |
| Max. vodeni tlak [bar] | 8 |
| Bat | Nickel-plated brass |
| Diferencialni tlak max. [bar] | 16 |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 180 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 70 |
| Max. temperatura vodenega medija [°C] | 60 |
| Max. dovoljeni statični tlak [bar] | 16 |
| Max. razlika v delovnem tlaku [bar] | 14 |
| Priključki | Stainless steel |
| Ffunkcija | NC |
| F [mm] | 110.0 |
| C [mm] | 245.0 |
| A [mm] | 255.0 |
