* slike so simbolične

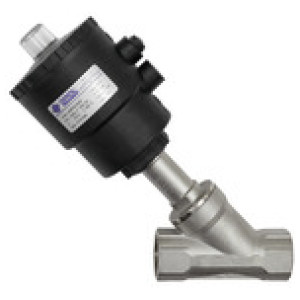

Batni kotni ventil, NC, nerjavno jeklo, G 3/4
SKU: 133208RIE
EAN: 4047322476997
Angle seat valve, Piston drive without NAMUR interface, NC, Medium temp. -10°C to 180°C, G 3/4, Pressure difference max 16 bar
Angle-seat valves with external pilot control and a self-aligning valve disc for neutral (bronze body) or corrosive (stainless steel body) media.
- Very high flow due to angled seat design
- Water hammer prevented by fluid entry under the disc
- Suitable for vacuum operation (low vacuum)
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Batni kotni ventil, NC, nerjavno jeklo, G 3/4
Bat: Nickel-plated brass
Nadzor zraka: G 1/8
Navoj: G 3/4
Ohišje: Stainless steel AISI 316
Operater: Polyamide (glass fibre-reinforced)
Priključki: Stainless steel
Steblo: Stainless steel
C [mm]: 195.0
A [mm]: 213.0
Nadzor zraka: G 1/8
Navoj: G 3/4
Ohišje: Stainless steel AISI 316
Operater: Polyamide (glass fibre-reinforced)
Priključki: Stainless steel
Steblo: Stainless steel
C [mm]: 195.0
A [mm]: 213.0

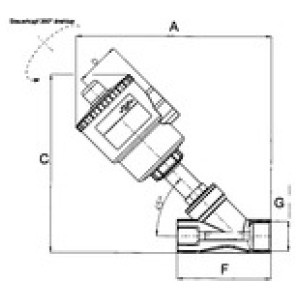

| Šifra | Navoj | Max. razlika v delovnem tlaku [bar] | F [mm] | C [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 133209RIE | G 1 | 11 | 105.0 | 202.0 | 219.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 133206RIE | G 1/2 | 16 | 85.0 | 169.0 | 190.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 133208RIE | G 3/4 | 16 | 95.0 | 195.0 | 213.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 133207RIE | G 3/4 | 10 | 95.0 | 176.0 | 195.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Angle seat valve, Piston drive without NAMUR interface, NC, Medium temp. -10°C to 180°C, G 3/4, Pressure difference max 16 bar
Angle-seat valves with external pilot control and a self-aligning valve disc for neutral (bronze body) or corrosive (stainless steel body) media.
- Very high flow due to angled seat design
- Water hammer prevented by fluid entry under the disc
- Suitable for vacuum operation (low vacuum)
Tehnični podatki in specifikacije
| Ohišje | Stainless steel AISI 316 |
| Navoj | G 3/4 |
| Steblo | Stainless steel |
| Tesnilo | PTFE |
| Operater | Polyamide (glass fibre-reinforced) |
| Nadzor zraka | G 1/8 |
| Min. vodeni tlak [bar] | 4 |
| Max. vodeni tlak [bar] | 10 |
| Bat | Nickel-plated brass |
| Diferencialni tlak max. [bar] | 16 |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 180 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 70 |
| Max. temperatura vodenega medija [°C] | 60 |
| Max. dovoljeni statični tlak [bar] | 16 |
| Max. razlika v delovnem tlaku [bar] | 16 |
| Priključki | Stainless steel |
| Ffunkcija | NC |
| F [mm] | 95.0 |
| C [mm] | 195.0 |
| A [mm] | 213.0 |
