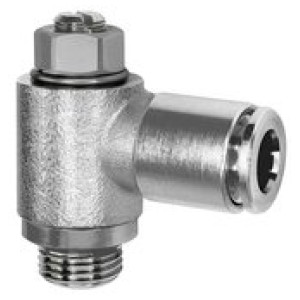

Bidirectional flow control valve, both directions, G1/4,plug-in 6

SKU: 116847RIE
EAN: 4047322716468

Bidirectional flow control valve, both dir.(B),slotted-head screwdr.G1/4,plug-in6,rotating,0to10bar,-20°Cto80°C,nickel-plated br.

For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.

Ni na zalogi
Pošljite povpraševanje
Primerjaj z ostalimi

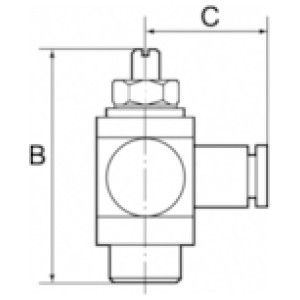

Šifra Navoj Za cevi [mm] a/f [mm] C [mm] B [mm] Zaloga Cena Nakup Natisni
116844RIE G 1/8 4 9 20.5 31.8
Ni na zalogi
? Povpraševanje Natisni
116835RIE M5 4 6 18.5 25.5
Ni na zalogi
? Povpraševanje Natisni
116942RIE G 3/8 10 14 29.0 50.0
Ni na zalogi
? Povpraševanje Natisni
116846RIE G 1/8 8 9 23.5 31.8
Ni na zalogi
? Povpraševanje Natisni
116848RIE G 1/4 8 10 24.5 39.5
Ni na zalogi
? Povpraševanje Natisni
116872RIE G 1/4 10 10 27.0 39.5
Ni na zalogi
? Povpraševanje Natisni
116836RIE M5 6 6 21.5 25.5
Ni na zalogi
? Povpraševanje Natisni
116845RIE G 1/8 6 9 22.5 31.8
Ni na zalogi
? Povpraševanje Natisni
116847RIE G 1/4 6 10 24.0 39.5
Ni na zalogi
? Povpraševanje Natisni
116924RIE G 3/8 8 14 26.5 50.0
Ni na zalogi
? Povpraševanje Natisni

Opis

Bidirectional flow control valve, both dir.(B),slotted-head screwdr.G1/4,plug-in6,rotating,0to10bar,-20°Cto80°C,nickel-plated br.

For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.

Tehnični podatki in specifikacije

Max. obratovalni tlak [bar] 10
Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 80
Tesnilo NBR
Navoj G 1/4
Za cevi [mm] 6
B [mm] 39.5
C [mm] 24.0
a/f [mm] 10
Telo Nickel-plated brass
Silicone-free Yes

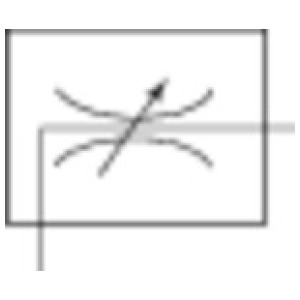

Ffunkcija Both directions throttling (B)
Vrsta povezave Plug-in connector
Design rotating
