Blue serija",zmanjš., 10/6 mm
SKU: 109922RIE
EAN: 4047322392785
Plug nipple »Blue Series«, reducing, plug nipple 10/6 mm, pmax short term 15 bar, PlasticPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Only recommended for use in combination with quick connectors of the »Blue Series«. Suitability testing for use with other series is the responsibility of the user.
Čas dobave: Predvidoma 3 - 5 dni
2,94 €
| Šifra | Material | Priključek [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 109923RIE | Plastic | 10/8 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,05 € |  | |
| 135804RIE | Nickel-plated brass | 16/12 | 54.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,98 € | | |
| 109924RIE | Plastic | 12/8 | 49.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,28 € | | |
| 109919RIE | Plastic | 6/4 | 37.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,10 € | | |
| 109921RIE | Plastic | 8/6 | 42.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,43 € | | |
| 109920RIE | Plastic | 8/4 | 40.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,24 € | | |
| 109925RIE | Plastic | 12/10 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,62 € | | |
| 109922RIE | Plastic | 10/6 | 44.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,94 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Only recommended for use in combination with quick connectors of the »Blue Series«. Suitability testing for use with other series is the responsibility of the user.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Srednje | Compressed air, neutral and safe gases and liquids |

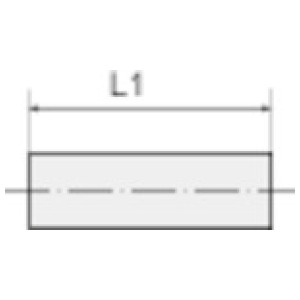

| L1 [mm] | 44.5 |
| Priključek [mm] | 10/6 |
| Material | Plastic |
