* slike so simbolične

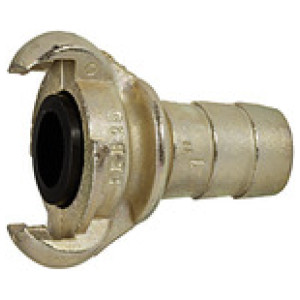

Čeljustna spojka s cevnim priklj. I.D. 13 (1/2")
SKU: 107848RIE
EAN: 4047322258708
Jaw coupling with hose connection, I.D. 13 (1/2"), with safety collar, Malleable cast iron, galvanised and yellow passivated
"Universal standard coupling for compressed air lines on construction sites or in industry
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Čeljustna spojka s cevnim priklj. I.D. 13 (1/2")
Material: Malleable iron, zinc plated and yellow chromated
Za cev I.D.: 13 (1/2")
Za cev I.D.: 13 (1/2")
Aktivni filtri - 0
| Šifra | DN | Za cev I.D. | Varnostni ovratnik | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 107848RIE | 8.5 | 13 (1/2") | 25 | 69.1 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 107849RIE | 15 | 19 (3/4") | 28.5 | 75.1 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107850RIE | 19 | 25 (1") | 38 | 75.1 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Prikazujem 1 do 3 od 3 zapisov
Opis
Jaw coupling with hose connection, I.D. 13 (1/2"), with safety collar, Malleable cast iron, galvanised and yellow passivated
"Universal standard coupling for compressed air lines on construction sites or in industry
Tehnični podatki in specifikacije
| DN | 8.5 |
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -40 |
| Max. delovna temperatura [°C] | 95 |
| Tesnilo | NBR |
| Material | Malleable iron, zinc plated and yellow chromated |
| Razdalja med objemkami [mm] | 42 |
| Za cev I.D. | 13 (1/2") |
| L [mm] | 69.1 |
| H [mm] | 63.0 |
| Varnostni ovratnik | 25 |
