* slike so simbolične
Čeljustna spojka s cevnim priklj. I.D. 13 (1/2") z tesnilom Med.
SKU: 107845RIE
EAN: 4047322258562

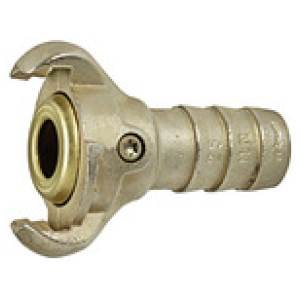

Jaw coupling with hose connection, I.D. 13 (1/2"), with brass seal, Malleable cast iron, galvanised/yellow passivated, max. 10 bar
"Universal standard coupling for compressed air lines on construction sites or in industry
Čas dobave 3 - 5 dni
16,18 €
| Šifra | DN | Za cev I.D. | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 107847RIE | 19 | 25 (1") | 84.1 | Čas dobave 3 - 5 dni | 17,93 € |  | |
| 107845RIE | 8.5 | 13 (1/2") | 78.1 | Čas dobave 3 - 5 dni | 16,18 € | | |
| 107846RIE | 15 | 19 (3/4") | 82.9 | Čas dobave 3 - 5 dni | 14,08 € | |
Opis
Jaw coupling with hose connection, I.D. 13 (1/2"), with brass seal, Malleable cast iron, galvanised/yellow passivated, max. 10 bar
"Universal standard coupling for compressed air lines on construction sites or in industry
Tehnični podatki in specifikacije
| DN | 8.5 |
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -40 |
| Max. delovna temperatura [°C] | 95 |
| Tesnilo | NBR |
| Material | Malleable iron, zinc plated and yellow chromated |
| Razdalja med objemkami [mm] | 42 |
| Za cev I.D. | 13 (1/2") |
| L [mm] | 78.1 |
| H [mm] | 63.0 |
