Čeljustna spojka s cevnim priključkom, I.D. 13 (1/2
Čeljustna spojka s cevnim priključkom, I.D. 13 (1/2

* slike so simbolične

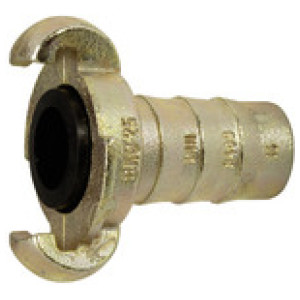

Čeljustna spojka s cevnim priključkom, I.D. 13 (1/2"), DN 8.5

SKU: 107841RIE
EAN: 4047322258517

Jaw coupling with hose connection, I.D. 13 (1/2"), Malleable cast iron, galv. / yellow passivated, Operating pressure max. 10 bar

"

Universal standard coupling for compressed air lines on construction sites or in industry

Čas dobave 3 - 5 dni
7,71 €
Primerjaj z ostalimi
Šifra DN Za cev I.D. L [mm] Zaloga Cena Nakup Natisni
107841RIE 8.5 13 (1/2") 69.0
Čas dobave 3 - 5 dni
7,71 € Natisni
107842RIE 15 19 (3/4") 69.0
Čas dobave 3 - 5 dni
7,17 € Natisni
107840RIE 7 10 (3/8") 69.0
Čas dobave 3 - 5 dni
9,19 € Natisni
107844RIE 25 32 (1 1/4") 88.0
Čas dobave 3 - 5 dni
13,52 € Natisni
107843RIE 19 25 (1") 70.0
Čas dobave 3 - 5 dni
8,84 € Natisni

Opis

Jaw coupling with hose connection, I.D. 13 (1/2"), Malleable cast iron, galv. / yellow passivated, Operating pressure max. 10 bar

"

Universal standard coupling for compressed air lines on construction sites or in industry

Tehnični podatki in specifikacije

DN 8.5
Max. obratovalni tlak [bar] 10
Min. delovna temperatura [°C] -40
Max. delovna temperatura [°C] 95
Tesnilo NBR
Material Malleable iron, zinc plated and yellow chromated
Razdalja med objemkami [mm] 42
Za cev I.D. 13 (1/2")
L [mm] 69.0
H [mm] 63.0
