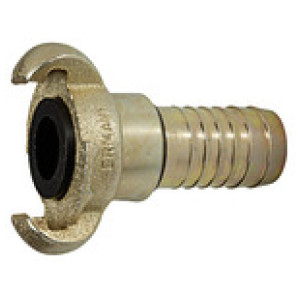

Čeljustna spojka s cevnim priključkom, I.D. 19 (3/4"),vrteče
SKU: 107866RIE
EAN: 4047322259194
Jaw coupling with hose connection, I.D. 19 (3/4"), rotating, Malleable cast iron, galvanised and yellow passivated, max. 10 bar
"Universal standard coupling for compressed air lines on construction sites or in industry
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Čeljustna spojka s cevnim priključkom, I.D. 19 (3/4"),vrteče
Material: Malleable iron, zinc plated and yellow chromated
Za cev I.D.: 19 (3/4")
Za cev I.D.: 19 (3/4")
| Šifra | DN | Za cev I.D. | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 107865RIE | 10 | 13 (1/2") | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 107866RIE | 15 | 19 (3/4") | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107867RIE | 19 | 25 (1") | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Jaw coupling with hose connection, I.D. 19 (3/4"), rotating, Malleable cast iron, galvanised and yellow passivated, max. 10 bar
"Universal standard coupling for compressed air lines on construction sites or in industry
Tehnični podatki in specifikacije
| DN | 15 |
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -40 |
| Max. delovna temperatura [°C] | 95 |
| Tesnilo | NBR |
| Material | Malleable iron, zinc plated and yellow chromated |
| Razdalja med objemkami [mm] | 42 |
| Za cev I.D. | 19 (3/4") |
| L [mm] | 85.9 |
| H [mm] | 63.0 |
