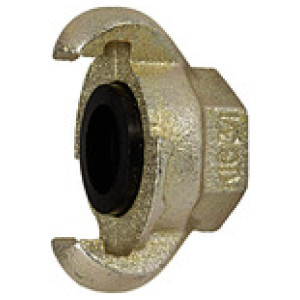

Čeljustni spoj z notranjim navojem, G 1/2, DN 19
SKU: 107859RIE
EAN: 4047322259057
Jaw coupling with IT, G 1/2, DN 19, Malleable cast iron, galvanised and yellow passivated, Operating pressure max. 10 bar
"Universal standard coupling for compressed air lines on construction sites or in industry
Čas dobave 3 - 5 dni
9,76 €
| Šifra | Navoj | DN | a/f [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 107861RIE | G 1 | 20 | 40 | 40.0 | Čas dobave 3 - 5 dni | 9,28 € |  | |
| 107858RIE | G 3/8 | 15 | 22 | 36.0 | Čas dobave 3 - 5 dni | 9,28 € | | |
| 107859RIE | G 1/2 | 19 | 27 | 37.0 | Čas dobave 3 - 5 dni | 9,76 € | | |
| 107860RIE | G 3/4 | 20 | 32 | 38.0 | Čas dobave 3 - 5 dni | 7,82 € | |
Opis
Jaw coupling with IT, G 1/2, DN 19, Malleable cast iron, galvanised and yellow passivated, Operating pressure max. 10 bar
"Universal standard coupling for compressed air lines on construction sites or in industry
Tehnični podatki in specifikacije
| DN | 19 |
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -40 |
| Max. delovna temperatura [°C] | 95 |
| Navoj | G 1/2 |
| a/f [mm] | 27 |
| Tesnilo | NBR |
| Material | Malleable iron, zinc plated and yellow chromated |
| Razdalja med objemkami [mm] | 42 |
| L [mm] | 37.0 |
| H [mm] | 63.0 |
