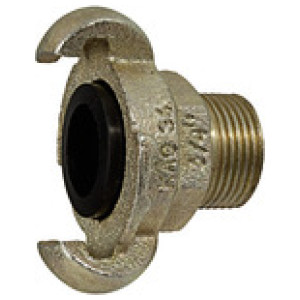

Čeljustni spoj z zunanjim navojem, G 3/8, DN 8.5
SKU: 107851RIE
EAN: 4047322258784
Jaw coupling with ET, G 3/8, DN 8.5, Malleable cast iron, galvanised and yellow passivated, Operating pressure max. 10 bar
"Universal standard coupling for compressed air lines on construction sites or in industry
Čas dobave 3 - 5 dni
11,32 €
| Šifra | Navoj | DN | a/f [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 107854RIE | G 1 | 20 | 40 | 48.0 | Čas dobave 3 - 5 dni | 10,55 € |  | |
| 107851RIE | G 3/8 | 8.5 | 27 | 51.0 | Čas dobave 3 - 5 dni | 11,32 € | | |
| 107853RIE | G 3/4 | 17 | 32 | 48.0 | Čas dobave 3 - 5 dni | 9,19 € | | |
| 107852RIE | G 1/2 | 13 | 27 | 48.0 | Čas dobave 3 - 5 dni | 9,96 € | |
Opis
Jaw coupling with ET, G 3/8, DN 8.5, Malleable cast iron, galvanised and yellow passivated, Operating pressure max. 10 bar
"Universal standard coupling for compressed air lines on construction sites or in industry
Tehnični podatki in specifikacije
| DN | 8.5 |
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -40 |
| Max. delovna temperatura [°C] | 95 |
| Navoj | G 3/8 |
| a/f [mm] | 27 |
| Tesnilo | NBR |
| Material | Malleable iron, zinc plated and yellow chromated |
| Razdalja med objemkami [mm] | 42 |
| L [mm] | 51.0 |
| H [mm] | 63.0 |
