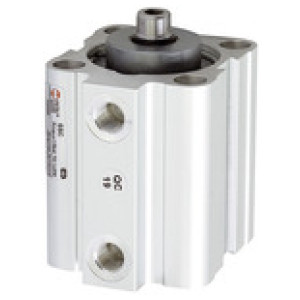

Cilinder kratkega hoda, enosmerni, batØ 40, hod 10, G 1/8
SKU: 105962RIE
EAN: 2100400010CN
Short stroke cylinder, single-acting, Magnet, Piston Ø 40, Stroke 10, G 1/8, Working pressure max. 10 bar, Temp. -10 °C to 80 °C
Suitable for installation in limited spaces.
Supplied with magnet.
Suitable for filtered compressed air, lubricated (ensure continuity) or unlubricated.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Cilinder kratkega hoda, enosmerni, batØ 40, hod 10, G 1/8
Bat: Synthetic (acetal) resin
Batnica: C45 steel, hard chrome-plated
Cushioning: non-cushioned
Ffunkcija: single-acting
Gewinde Kolbenstange: female piston rod
Glava: Aluminium
Magnet: with magnet
Ovoj: C45 steel, hard chrome-plated
Povezava: G 1/8
Starting position: pressureless in the retracted position
Tesnilo batnice: NBR (additional charge for PU and FKM)
Batnica: C45 steel, hard chrome-plated
Cushioning: non-cushioned
Ffunkcija: single-acting
Gewinde Kolbenstange: female piston rod
Glava: Aluminium
Magnet: with magnet
Ovoj: C45 steel, hard chrome-plated
Povezava: G 1/8
Starting position: pressureless in the retracted position
Tesnilo batnice: NBR (additional charge for PU and FKM)
Aktivni filtri - 0
| Šifra | Batnica IT | Glava | Povezava | Min. nastavljeni tlak [bar] | Stroke [mm] | Bat Ø [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 105952RIE | M3 | Painted brass | M5 | 0.6 | 10 | 12 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 105953RIE | M3 | Painted brass | M5 | 0.6 | 25 | 12 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 105954RIE | M5 | Painted brass | M5 | 0.6 | 10 | 16 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 105955RIE | M5 | Painted brass | M5 | 0.6 | 25 | 16 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 105956RIE | M5 | Painted brass | M5 | 0.6 | 10 | 20 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 105957RIE | M5 | Painted brass | M5 | 0.6 | 25 | 20 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 105958RIE | M5 | Painted brass | G 1/8 | 0.6 | 10 | 25 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 105959RIE | M5 | Painted brass | G 1/8 | 0.6 | 25 | 25 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 105960RIE | M6 | Aluminium | G 1/8 | 0.6 | 10 | 32 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 105961RIE | M6 | Aluminium | G 1/8 | 0.6 | 25 | 32 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Prikazujem 1 do 10 od 14 zapisov
Opis
Short stroke cylinder, single-acting, Magnet, Piston Ø 40, Stroke 10, G 1/8, Working pressure max. 10 bar, Temp. -10 °C to 80 °C
Suitable for installation in limited spaces.
Supplied with magnet.
Suitable for filtered compressed air, lubricated (ensure continuity) or unlubricated.
Tehnični podatki in specifikacije
| Min. nastavljeni tlak [bar] | 0.4 |
| Magnet | with magnet |
| Ffunkcija | single-acting |
| Starting position | pressureless in the retracted position |
| Cushioning | non-cushioned |
| Gewinde Kolbenstange | female piston rod |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 80 |
| Ovoj | C45 steel, hard chrome-plated |
| Tesnilo batnice | NBR (additional charge for PU and FKM) |
| Bat Ø [mm] | 40 |
| Stroke [mm] | 10 |
| Povezava | G 1/8 |
| Batnica | C45 steel, hard chrome-plated |
| Batnica IT | M6 |
| Bat | Synthetic (acetal) resin |
| Glava | Aluminium |
