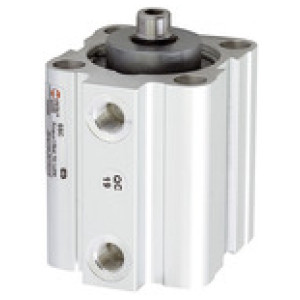

Cilinder kratkega hoda, enosmerni, batØ 50, hod 25, G 1/8
SKU: 105964RIE
EAN: 2100500025CN
Short stroke cylinder, single-acting, Magnet, Piston Ø 50, Stroke 25, G 1/8, Working pressure max. 10 bar, Temp. -10 °C to 80 °C
Suitable for installation in limited spaces.
Supplied with magnet.
Suitable for filtered compressed air, lubricated (ensure continuity) or unlubricated.
Obrestno financiranje
- 19,04 € x 6 mesecev
- 37,65 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Batnica IT | Glava | Povezava | Min. nastavljeni tlak [bar] | Stroke [mm] | Bat Ø [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
105954RIE | M5 | Painted brass | M5 | 0.6 | 10 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 70,30 € | ||
105959RIE | M5 | Painted brass | G 1/8 | 0.6 | 25 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 78,71 € | ||
105958RIE | M5 | Painted brass | G 1/8 | 0.6 | 10 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 77,27 € | ||
105965RIE | M8 | Aluminium | G 1/8 | 0.4 | 25 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 127,94 € | ||
105953RIE | M3 | Painted brass | M5 | 0.6 | 25 | 12 | Čas dobave: Predvidoma 3 - 5 dni | 69,21 € | ||
105956RIE | M5 | Painted brass | M5 | 0.6 | 10 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 73,80 € | ||
105955RIE | M5 | Painted brass | M5 | 0.6 | 25 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 71,11 € | ||
105957RIE | M5 | Painted brass | M5 | 0.6 | 25 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 74,62 € | ||
105952RIE | M3 | Painted brass | M5 | 0.6 | 10 | 12 | Čas dobave: Predvidoma 3 - 5 dni | 68,54 € | ||
105961RIE | M6 | Aluminium | G 1/8 | 0.6 | 25 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 89,19 € | ||
105962RIE | M6 | Aluminium | G 1/8 | 0.4 | 10 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 88,39 € | ||
105963RIE | M6 | Aluminium | G 1/8 | 0.4 | 25 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 90,15 € | ||
105960RIE | M6 | Aluminium | G 1/8 | 0.6 | 10 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 87,45 € | ||
105964RIE | M8 | Aluminium | G 1/8 | 0.4 | 25 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 103,80 € |
Opis
Short stroke cylinder, single-acting, Magnet, Piston Ø 50, Stroke 25, G 1/8, Working pressure max. 10 bar, Temp. -10 °C to 80 °C
Suitable for installation in limited spaces.
Supplied with magnet.
Suitable for filtered compressed air, lubricated (ensure continuity) or unlubricated.
Tehnični podatki in specifikacije
Min. nastavljeni tlak [bar] | 0.4 |
Magnet | with magnet |

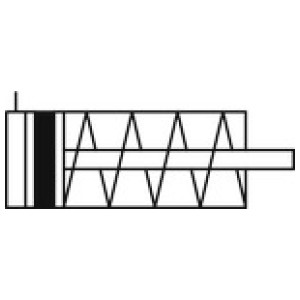

Ffunkcija | single-acting |
Starting position | pressureless in the retracted position |
Cushioning | non-cushioned |
Gewinde Kolbenstange | female piston rod |
Max. delovni tlak [bar] | 10 |
Min. temperaturno območje [°C] | -10 |
Max. temperaturno območje [°C] | 80 |
Ovoj | C45 steel, hard chrome-plated |
Tesnilo batnice | NBR (additional charge for PU and FKM) |
Bat Ø [mm] | 50 |
Stroke [mm] | 25 |
Povezava | G 1/8 |
Batnica | C45 steel, hard chrome-plated |
Batnica IT | M8 |
Bat | Synthetic (acetal) resin |
Glava | Aluminium |
