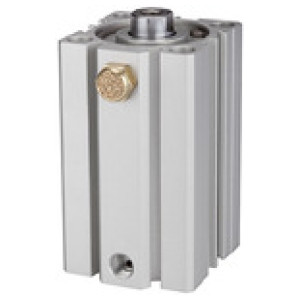

Cilinder z kratkim hodom, enosmerni, bat Ø 32, hod 20, G 1/8
SKU: 115189RIE
EAN: 4047322328890

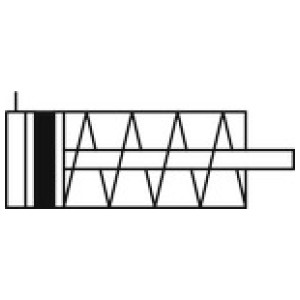

Short stroke cylinder »ASQ« single-acting, Magnet, Piston Ø 32, Stroke 20, G 1/8, Working pressure 2-10 bar, Temp. -20°C to 70°C
Suitable for installation in limited spaces.
Supplied with magnet.
Short-stroke cylinders in two different versions:
»ACQ« Series, double-acting, Ø 12 to 100
»ASQ« Series, single-acting, Ø 12 to 63
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Čas dobave: Predvidoma 3 - 5 dni
81,59 €
ali od 15,01 € / mesec
Izračunaj obrok
Obrestno financiranje
- 15,01 € x 6 mesecev
- 29,69 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Bat | Batnica IT | Povezava | Vrsta | Batnica Ø [mm] | Stroke [mm] | Bat Ø [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 115171RIE | Messing | M4x0.7 | M5x0.8 | 4 | 8 | 10 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 65,40 € |  | |
| 115180RIE | Aluminium | M6x1.0 | M5x0.8 | 5 | 12 | 5 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 71,24 € | | |
| 115173RIE | Messing | M4x0.7 | M5x0.8 | 4 | 8 | 20 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 66,70 € | | |
| 115195RIE | Aluminium | M8x1.25 | G 1/8 | 6 | 16 | 20 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 85,50 € | | |
| 115182RIE | Aluminium | M6x1.0 | M5x0.8 | 5 | 12 | 15 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 72,53 € | | |
| 115205RIE | Aluminium | M10x1.5 | G 1/4 | 6 | 20 | 10 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 113,47 € | | |
| 115209RIE | Aluminium | M10x1.5 | G 1/4 | 6 | 20 | 30 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 118,69 € | | |
| 115201RIE | Aluminium | M10x1.5 | G 1/4 | 6 | 20 | 20 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 91,63 € | | |
| 115172RIE | Messing | M4x0.7 | M5x0.8 | 4 | 8 | 15 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 66,08 € | | |
| 115203RIE | Aluminium | M10x1.5 | G 1/4 | 6 | 20 | 30 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 110,91 € | | |
| 115199RIE | Aluminium | M10x1.5 | G 1/4 | 6 | 20 | 10 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 89,69 € | | |
| 115197RIE | Aluminium | M8x1.25 | G 1/8 | 6 | 16 | 30 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 86,78 € | | |
| 115184RIE | Aluminium | M6x1.0 | M5x0.8 | 5 | 12 | 25 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 73,81 € | | |
| 115207RIE | Aluminium | M10x1.5 | G 1/4 | 6 | 20 | 20 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 116,08 € | | |
| 115206RIE | Aluminium | M10x1.5 | G 1/4 | 6 | 20 | 15 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 114,78 € | | |
| 115204RIE | Aluminium | M10x1.5 | G 1/4 | 6 | 20 | 5 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 112,20 € | | |
| 115192RIE | Aluminium | M8x1.25 | G 1/8 | 6 | 16 | 5 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 83,56 € | | |
| 115188RIE | Aluminium | M8x1.25 | G 1/8 | 6 | 16 | 15 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 80,93 € | | |
| 115194RIE | Aluminium | M8x1.25 | G 1/8 | 6 | 16 | 15 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 84,84 € | | |
| 115196RIE | Aluminium | M8x1.25 | G 1/8 | 6 | 16 | 25 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 86,13 € | | |
| 115190RIE | Aluminium | M8x1.25 | G 1/8 | 6 | 16 | 25 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 82,24 € | | |
| 115169RIE | Messing | M3x0.5 | M5x0.8 | 4 | 6 | 20 | 12 | Čas dobave: Predvidoma 3 - 5 dni | 64,28 € | | |
| 115185RIE | Aluminium | M6x1.0 | M5x0.8 | 5 | 12 | 30 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 74,48 € | | |
| 115175RIE | Aluminium | M5x0.8 | M5x0.8 | 5 | 10 | 10 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 68,00 € | | |
| 115170RIE | Messing | M4x0.7 | M5x0.8 | 4 | 8 | 5 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 64,92 € | | |
| 115186RIE | Aluminium | M8x1.25 | G 1/8 | 6 | 16 | 5 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 79,65 € | | |
| 115179RIE | Aluminium | M5x0.8 | M5x0.8 | 5 | 10 | 30 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 70,61 € | | |
| 115176RIE | Aluminium | M5x0.8 | M5x0.8 | 5 | 10 | 15 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 68,65 € | | |
| 115167RIE | Messing | M3x0.5 | M5x0.8 | 4 | 6 | 10 | 12 | Čas dobave: Predvidoma 3 - 5 dni | 62,99 € | | |
| 115193RIE | Aluminium | M8x1.25 | G 1/8 | 6 | 16 | 10 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 84,19 € | | |
| 115178RIE | Aluminium | M5x0.8 | M5x0.8 | 5 | 10 | 25 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 69,93 € | | |
| 115202RIE | Aluminium | M10x1.5 | G 1/4 | 6 | 20 | 25 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 92,60 € | | |
| 115208RIE | Aluminium | M10x1.5 | G 1/4 | 6 | 20 | 25 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 117,39 € | | |
| 115166RIE | Messing | M3x0.5 | M5x0.8 | 4 | 6 | 5 | 12 | Čas dobave: Predvidoma 3 - 5 dni | 62,35 € | | |
| 115168RIE | Messing | M3x0.5 | M5x0.8 | 4 | 6 | 15 | 12 | Čas dobave: Predvidoma 3 - 5 dni | 63,64 € | | |
| 115177RIE | Aluminium | M5x0.8 | M5x0.8 | 5 | 10 | 20 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 69,28 € | | |
| 115191RIE | Aluminium | M8x1.25 | G 1/8 | 6 | 16 | 30 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 82,87 € | | |
| 115181RIE | Aluminium | M6x1.0 | M5x0.8 | 5 | 12 | 10 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 71,89 € | | |
| 115187RIE | Aluminium | M8x1.25 | G 1/8 | 6 | 16 | 10 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 80,30 € | | |
| 115198RIE | Aluminium | M10x1.5 | G 1/4 | 6 | 20 | 5 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 88,73 € | | |
| 115174RIE | Aluminium | M5x0.8 | M5x0.8 | 5 | 10 | 5 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 67,37 € | | |
| 115200RIE | Aluminium | M10x1.5 | G 1/4 | 6 | 20 | 15 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 90,65 € | | |
| 115183RIE | Aluminium | M6x1.0 | M5x0.8 | 5 | 12 | 20 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 73,18 € | | |
| 115189RIE | Aluminium | M8x1.25 | G 1/8 | 6 | 16 | 20 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 81,59 € | |
Opis
Short stroke cylinder »ASQ« single-acting, Magnet, Piston Ø 32, Stroke 20, G 1/8, Working pressure 2-10 bar, Temp. -20°C to 70°C
Suitable for installation in limited spaces.
Supplied with magnet.
Short-stroke cylinders in two different versions:
»ACQ« Series, double-acting, Ø 12 to 100
»ASQ« Series, single-acting, Ø 12 to 63
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Tehnični podatki in specifikacije
| Magnet | with magnet |
| Ffunkcija | single-acting |
| Serija | ASQ series |
| Starting position | pressureless in the retracted position |
| Cushioning | non-cushioned |
| Gewinde Kolbenstange | female piston rod |
| Min. delovni tlak [bar] | 2 |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Tesnilo | NBR |
| Ovoj | Aluminium |
| Bat Ø [mm] | 32 |
| Stroke [mm] | 20 |
| Povezava | G 1/8 |
| Batnica | Steel, thick-chromed |
| Batnica IT | M8x1.25 |
| Batnica Ø [mm] | 16 |
| Bat | Aluminium |
| Vrsta | 6 |
