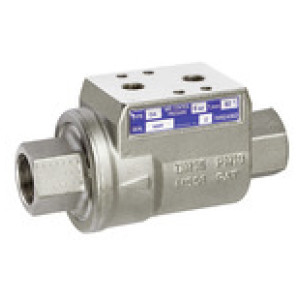

Coaxial valve pneumat. actuated, single-acting NC, NBR, Rp 1 1/4
SKU: 133394RIE
EAN: 4047322477918
Coaxial valve pneumat. actuated, single-acting NC, nickel-plated brass, Temp. -20°C to 80°C, Control pressure 4.2-8 bar, Rp 1 1/4
2/2-way coaxial valves, specially designed for automated industrial plant engineering.
A low-price, compact, space-saving and reliable alternative to ball valves with a pneumatic rotary actuator.
These valves have a full bore and - owing to the optimised design - only minimal flow losses.
They are controlled by means of filtered compressed air.
Obrestno financiranje
- 11,60 € x 36 mesecev
- 16,67 € x 24 mesecev
- 31,91 € x 12 mesecev
- 62,42 € x 6 mesecev
- 123,46 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

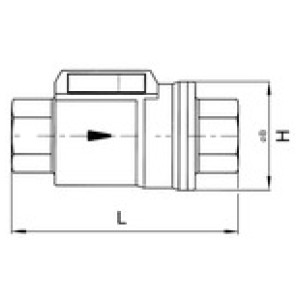

| Šifra | Navoj | DN | H [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 133395RIE | Rp 1 1/2 | 40 | 96.0 | 180.0 | Čas dobave: Predvidoma 3 - 5 dni | 425,67 € |  | |
| 103733RIE | Rp 3/4 | 20 | 63.5 | 135.0 | Čas dobave: Predvidoma 3 - 5 dni | 203,97 € | | |
| 133396RIE | Rp 2 | 50 | 109.0 | 207.0 | Čas dobave: Predvidoma 3 - 5 dni | 580,52 € | | |
| 103734RIE | Rp 1 | 25 | 69.0 | 143.0 | Čas dobave: Predvidoma 3 - 5 dni | 236,29 € | | |
| 103731RIE | Rp 3/8 | 10 | 46.0 | 98.0 | Čas dobave: Predvidoma 3 - 5 dni | 162,63 € | | |
| 103732RIE | Rp 1/2 | 15 | 51.7 | 112.0 | Čas dobave: Predvidoma 3 - 5 dni | 179,68 € | | |
| 133394RIE | Rp 1 1/4 | 32 | 86.0 | 165.0 | Čas dobave: Predvidoma 3 - 5 dni | 341,34 € | |
Opis
Coaxial valve pneumat. actuated, single-acting NC, nickel-plated brass, Temp. -20°C to 80°C, Control pressure 4.2-8 bar, Rp 1 1/4
2/2-way coaxial valves, specially designed for automated industrial plant engineering.
A low-price, compact, space-saving and reliable alternative to ball valves with a pneumatic rotary actuator.
These valves have a full bore and - owing to the optimised design - only minimal flow losses.
They are controlled by means of filtered compressed air.
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass |
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Povezava | NAMUR interface, direct: 2 x G 1/8 |
| Navoj | Rp 1 1/4 |
| Notranji deli | Nickel-plated brass |
| Vzmet | Stainless steel |
| Vgradni položaj | Any |
| Različica | single-acting - spring to close |
| Tesnilo | NBR |
| Min. vodeni tlak [bar] | 4.2 |
| Max. vodeni tlak [bar] | 8 |
| DN | 32 |
| H [mm] | 86.0 |
| L [mm] | 165.0 |
