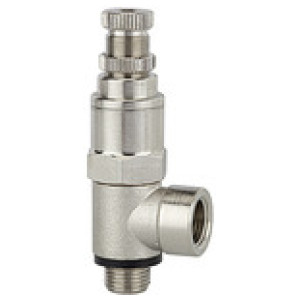

Compact pressure regulator, screw connection for hose G 1/8 IT

SKU: 107038RIE
EAN: 4047322181594

Compact pressure regulator, screw connection for hose G 1/8 IT,G 1/8, Control range 0-8 bar, Temp. 0°C to 70°C, nickel-plated brass

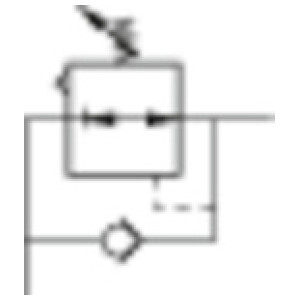

Piston pressure regulator with self-relieving design, hollow bolt and pivoting ring piece. The regulator is connected directly into the consumer (e.g. cylinder, handling equipment, etc.). The working pressure can thus be adapted to the specific application.

Čas dobave: Predvidoma 3 - 5 dni
38,39 €
Primerjaj z ostalimi
Šifra Zaloga Cena Nakup Natisni
107038RIE
Čas dobave: Predvidoma 3 - 5 dni
38,39 € Natisni

Opis

Compact pressure regulator, screw connection for hose G 1/8 IT,G 1/8, Control range 0-8 bar, Temp. 0°C to 70°C, nickel-plated brass

Piston pressure regulator with self-relieving design, hollow bolt and pivoting ring piece. The regulator is connected directly into the consumer (e.g. cylinder, handling equipment, etc.). The working pressure can thus be adapted to the specific application.

Tehnični podatki in specifikacije

Max. vhodni tlak [bar] 10
Max. temperaturno območje [°C] 70
Votli vijak Nickel-plated brass
Nihajna roka Nickel-plated brass
Nastavitveni vijak Nickel-plated brass
Notranji deli Brass with a bare metal surface
Tesnilo NBR
Zarobljena tesnila Polyamide (glass fibre-reinforced)
Navoj G 1/8
Povezava G 1/8 female thread

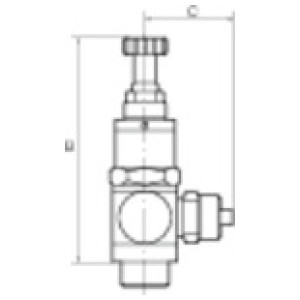

B [mm] 56.0
C [mm] 16.0
a/f [mm] 15
Max. krmilno območje [bar] 8
