Dušilni ventil, kvadratne oblike, eloksirani aluminij, G 1/8
SKU: 103809RIE
EAN: 4047322040631

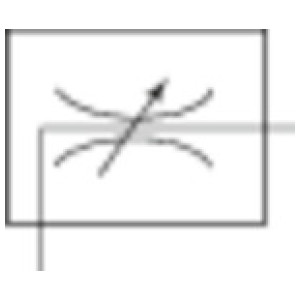

Throttle valve, in block shape, Anodised aluminium, Operating temperature -10 °C to 70 °C, G 1/8, PN max. 10 bar
Straight-way valves with restricted flow in both directions.
Čas dobave: Predvidoma 3 - 5 dni
15,42 €
| Šifra | Navoj | Navoj za pritrditev plošče | L [mm] | a/f [mm] | M [mm] | I [mm] | C [mm] | E [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103810RIE | G 1/4 | M18x1.5 | 6.5 | 22 | 23.8 | 24.0 | 25.0 | 35.0 | 50.0 | Čas dobave: Predvidoma 3 - 5 dni | 17,81 € |  | |
| 103812RIE | G 1/2 | M22x1.5 | 6.5 | 26 | 33.0 | 29.0 | 30.0 | 50.0 | 65.0 | Čas dobave: Predvidoma 3 - 5 dni | 31,28 € | | |
| 103811RIE | G 3/8 | M18x1.5 | 6.5 | 22 | 25.3 | 24.0 | 25.0 | 40.0 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 29,77 € | | |
| 103809RIE | G 1/8 | M12x0.75 | 4.5 | 15 | 16.4 | 15.0 | 16.0 | 24.0 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,42 € | |
Opis
Throttle valve, in block shape, Anodised aluminium, Operating temperature -10 °C to 70 °C, G 1/8, PN max. 10 bar
Straight-way valves with restricted flow in both directions.
Tehnični podatki in specifikacije
| Ohišje | Anodized aluminium |
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 70 |
| Tesnilo | NBR |
| Navoj | G 1/8 |
| Navoj za pritrditev plošče | M12x0.75 |
| Notranji deli | Brass |
| E [mm] | 24.0 |
| A [mm] | 34.0 |
| M [mm] | 16.4 |
| L [mm] | 4.5 |
| a/f [mm] | 15 |
| I [mm] | 15.0 |
| C [mm] | 16.0 |
