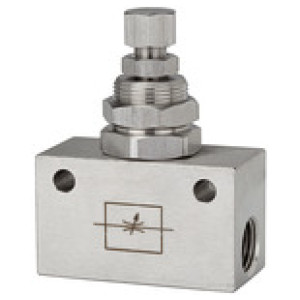

Dušilni ventil, kvadratne oblike, nerjavno jeklo 1.4404, G 1/4
SKU: 103814RIE
EAN: 4047322269766
Throttle valve, in block shape, Stainless steel 1.4404, Operating temperature 0 °C to 150 °C, G 1/4, PN max. 10 bar

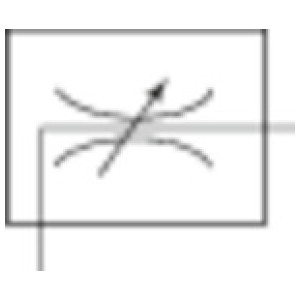

Straight-way valve with restricted flow in both directions.
Čas dobave 3 - 5 dni
146,49 €
ali od 13,66 € / mesec
Izračunaj obrok
Obrestno financiranje
- 13,66 € x 12 mesecev
- 26,72 € x 6 mesecev
- 52,86 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

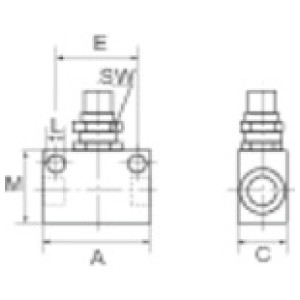

| Šifra | Navoj | L [mm] | a/f [mm] | C [mm] | M [mm] | E [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 103814RIE | G 1/4 | 5.5 | 22 | 25.0 | 30.0 | 35.0 | 50.0 | Čas dobave 3 - 5 dni | 146,49 € |  | |
| 103813RIE | G 1/8 | 4.5 | 14 | 15.0 | 20.0 | 24.0 | 34.0 | Čas dobave 3 - 5 dni | 131,91 € | |
Opis
Throttle valve, in block shape, Stainless steel 1.4404, Operating temperature 0 °C to 150 °C, G 1/4, PN max. 10 bar
Straight-way valve with restricted flow in both directions.
Tehnični podatki in specifikacije
| Ohišje | Stainless steel 1.4404 |
| Max. obratovalni tlak [bar] | 10 |
| Max. delovna temperatura [°C] | 150 |
| Tesnilo | FPM |
| Navoj | G 1/4 |
| Notranji deli | Stainless steel 1.4404 |
| E [mm] | 35.0 |
| A [mm] | 50.0 |
| M [mm] | 30.0 |
| L [mm] | 5.5 |
| a/f [mm] | 22 |
| C [mm] | 25.0 |
