* slike so simbolične

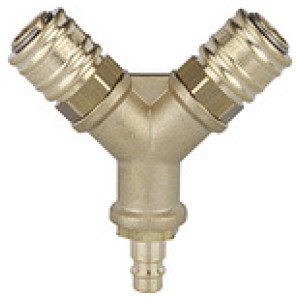

Dvojna Hitre spojke I.D. 7.2, navojni konični priklop G 1/2
SKU: 107263RIE
EAN: 4047322368148
Distributor with 2 quick-connect couplings I.D. 7.2, Bright brass, with plug nipple I.D. 7.2 - 7.8, G 1/2, Operating pre. 0-35 bar
1, 2 or 3-way distributor pieces made of brass with a bare metal surface, pre-assembled with quick disconnect coupling DN 7.2.
Available with threaded connection inside or outside or nipple for adaptation into an existing quick disconnect coupling DN 7.2 to DN 7.8.
Šifra | Povezava | Sestava distributerja | Spojke | Premer [mm] | Višina [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
107263RIE | Plug DN 7.2 to 7.8 / G 1/2 | Brass with a bare metal surface, G 1/2 IT | DN 7.2, brass with a bare metal surface, G 1/2 ET | 95.0 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | 31,72 € | | |
107262RIE | Plug DN 7.2 to 7.8 / G 3/8 | Brass with a bare metal surface, G 3/8 IT | DN 7.2, brass with a bare metal surface, G 3/8 ET | 92.0 | 97.0 | Čas dobave: Predvidoma 3 - 5 dni | 26,54 € | |
Opis
Distributor with 2 quick-connect couplings I.D. 7.2, Bright brass, with plug nipple I.D. 7.2 - 7.8, G 1/2, Operating pre. 0-35 bar
1, 2 or 3-way distributor pieces made of brass with a bare metal surface, pre-assembled with quick disconnect coupling DN 7.2.
Available with threaded connection inside or outside or nipple for adaptation into an existing quick disconnect coupling DN 7.2 to DN 7.8.
Tehnični podatki in specifikacije
Povezava | Plug DN 7.2 to 7.8 / G 1/2 |
Max. obratovalni tlak [bar] | 35 |
Sestava distributerja | Brass with a bare metal surface, G 1/2 IT |
Spojke | DN 7.2, brass with a bare metal surface, G 1/2 ET |
Ohišje | Brass with a bare metal surface |
Tesnilo | Industrial adhesives, medium strength |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 100 |
Min. sobna temperatura [°C] | -20 |
Max. sobna temperatura [°C] | 100 |
Varovaka | Industrial adhesives, medium strength |
Premer [mm] | 95.0 |
Višina [mm] | 100.0 |
