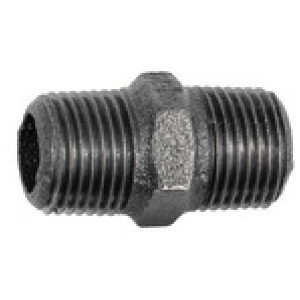

Dvojni nastavek s konicnim navojem280 Z.N./Z.N. R 1/2 črn
SKU: 133766RIE
EAN: 4047322481601
Double threaded nipple 280, ET/ET, R 1/2, black malleable iron fitting, operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|
133765RIE | R 3/8 | Čas dobave: Predvidoma 3 - 5 dni | 2,15 € | ||
133772RIE | R 2 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 16,02 € | ||
133767RIE | R 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 1,79 € | ||
133768RIE | R 1 | Čas dobave: Predvidoma 3 - 5 dni | 2,56 € | ||
133769RIE | R 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 4,39 € | ||
133764RIE | R 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 2,15 € | ||
133770RIE | R 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 5,09 € | ||
133771RIE | R 2 | Čas dobave: Predvidoma 3 - 5 dni | 8,45 € | ||
133766RIE | R 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 1,45 € |
Opis
Double threaded nipple 280, ET/ET, R 1/2, black malleable iron fitting, operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Tehnični podatki in specifikacije
Min. temperaturno območje [°C] | -20 |
Max. temperaturno območje [°C] | 300 |
Material | Black malleable iron B350-10, design symbol A |
Površina | Black |
Navoj | R 1/2 |
Standardni navoj | acc. ISO 7-1 |
