Dvojni nav. priklj.konični,R 1/4 o.,R 3/8 o.dolž. 17,Med.
SKU: 111186RIE
EAN: 4047322399005

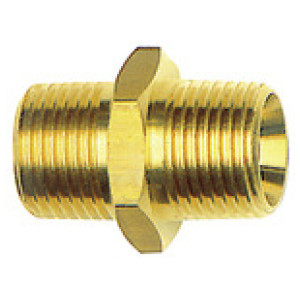

Double threaded nipple, Conical, R 1/4 o., R 3/8 o., AF 17, Brass
Previous design. Can be delivered as long as in stock.
After sale the delivery is made in new optimised geometry.
Čas dobave 3 - 5 dni
1,83 €

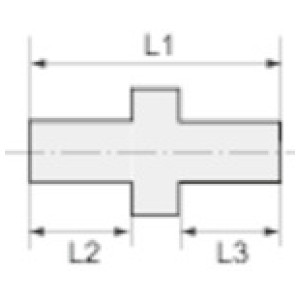

| Šifra | Navoj 1 | Navoj 2 | Opis | L2 [mm] | L3 [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100907RIE | R 3/8 | R 3/8 | Double nipple R 3/8 (tapered) | 16.0 | 16.0 | 22 | 38.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje |  |
| 100912RIE | R 1/2 | R 1/2 | Double nipple R 1/2 (tapered) | 16.0 | 16.0 | 27 | 38.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 111193RIE | R 3/4 | R 1 | 20.0 | 17.5 | 34 | 44.5 | Čas dobave 3 - 5 dni | ? | Povpraševanje | | |
| 111185RIE | R 1/4 | R 1/4 | 12.0 | 12.0 | 14 | 30.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | | |
| 111188RIE | R 3/8 | R 1/2 | 15.5 | 13.0 | 22 | 34.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | | |
| 111186RIE | R 1/4 | R 3/8 | 11.5 | 13.0 | 17 | 29.5 | Čas dobave 3 - 5 dni | 1,83 € | | ||
| 111190RIE | R 1/2 | R 3/4 | 17.5 | 15.5 | 27 | 39.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | | |
| 111192RIE | R 3/4 | R 3/4 | 22.0 | 22.0 | 32 | 51.5 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
Opis
Double threaded nipple, Conical, R 1/4 o., R 3/8 o., AF 17, Brass
Previous design. Can be delivered as long as in stock.
After sale the delivery is made in new optimised geometry.
Tehnični podatki in specifikacije
| Navoj 1 | R 1/4 |
| Navoj 2 | R 3/8 |
| L1 [mm] | 29.5 |
| L2 [mm] | 11.5 |
| L3 [mm] | 13.0 |
| a/f [mm] | 17 |
