Dvosmerni regulator tlaka z navojem-za cev G1/4 za cev Ø6
SKU: 106738RIE
EAN: 4047322085328

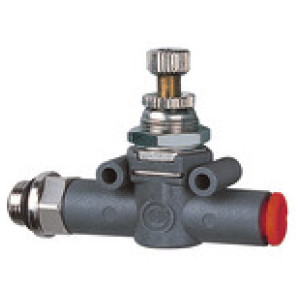

Bidirectional flow control valve »lineonline«, Flow both sides, Thread - hose, G 1/4, for hose Ø 6, Operating pressure max. 10 bar
Control the air intake and thus the speed of pneumatic units.
Čas dobave 3 - 5 dni
16,03 €

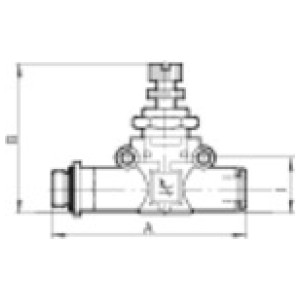

| Šifra | Navoj | Za cevi Ø [mm] | I [mm] | B [mm] | A [mm] | Pretok pri 6,3 bara [Nl/min] | Izhodni pretok pri 6,3 bar [Nl/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 106735RIE | G 1/8 | 4 | 12.7 | 35.0 | 51.6 | 155 | 160 | Čas dobave 3 - 5 dni | 16,03 € |  | |
| 106740RIE | G 3/8 | 8 | 18.7 | 49.0 | 72.2 | 850 | 950 | Čas dobave 3 - 5 dni | 22,06 € | | |
| 106738RIE | G 1/4 | 6 | 18.7 | 49.0 | 66.2 | 450 | 550 | Čas dobave 3 - 5 dni | 16,03 € | | |
| 106737RIE | G 1/8 | 8 | 14.6 | 40.0 | 61.5 | 850 | 950 | Čas dobave 3 - 5 dni | 18,40 € | | |
| 106736RIE | G 1/8 | 6 | 14.6 | 40.0 | 58.5 | 450 | 550 | Čas dobave 3 - 5 dni | 16,03 € | | |
| 106739RIE | G 1/4 | 8 | 18.7 | 49.0 | 70.6 | 850 | 950 | Čas dobave 3 - 5 dni | 19,37 € | | |
| 106734RIE | M5 | 4 | 12.7 | 35.0 | 47.7 | 155 | 160 | Čas dobave 3 - 5 dni | 16,03 € | |
Opis
Bidirectional flow control valve »lineonline«, Flow both sides, Thread - hose, G 1/4, for hose Ø 6, Operating pressure max. 10 bar
Control the air intake and thus the speed of pneumatic units.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. obratovalni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Telo | Technopolymer |
| Notranji deli | Nickel-plated brass, brass, technopolymer, stainless steel |
| Prilagoditev | Manual or screwdriver |

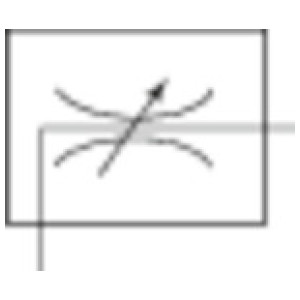

| Pnevmatski simboli | On housing |
| Navoj | G 1/4 |
| Za cevi Ø [mm] | 6 |
| A [mm] | 66.2 |
| B [mm] | 49.0 |
| I [mm] | 18.7 |
| Pretok pri 6,3 bara [Nl/min] | 450 |
| Izhodni pretok pri 6,3 bar [Nl/min] | 550 |
| Ffunkcija | bothway compressed air supply |
