* slike so simbolične

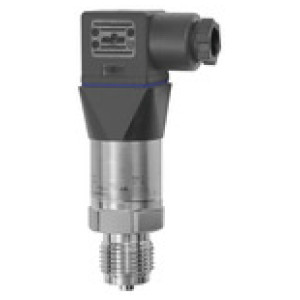

Elektr. Tlačni pretvornik, 0 - 40 bar, G 1/2, CrNi jeklo1.4571
SKU: 102734RIE
EAN: 14071145
Electr. pressure transducer, general industrial applications, Non-linearity 0.25%, Meas. range 0-40 bar, G 1/2, CrNi steel 1.4571
Pressure transmitters, very high precision, in CrNi steel, for complex measurement tasks in the process industry as well as research and development.
Applications: Low temperature or outdoor applications, extreme shock loads and vibration levels, corrosive media in the chemical industry.
Compatible with all internationally established process connections.
Obrestno financiranje
- 15,90 € x 48 mesecev
- 20,31 € x 36 mesecev
- 29,18 € x 24 mesecev
- 55,86 € x 12 mesecev
- 109,28 € x 6 mesecev
- 216,14 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Merilno območje min. bar | Spodnja/Zgornja meja območja | Merilno območje max. bar | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 102733RIE | 0 | Positive pressure | 25 | Čas dobave: Predvidoma 3 - 5 dni | 597,41 € |  | |
| 102726RIE | -1 | Vacuum | 0 | Čas dobave: Predvidoma 3 - 5 dni | 697,01 € | | |
| 102729RIE | 0 | Positive pressure | 4 | Čas dobave: Predvidoma 3 - 5 dni | 597,41 € | | |
| 102740RIE | 0 | Positive pressure | 600 | Čas dobave: Predvidoma 3 - 5 dni | 597,41 € | | |
| 102727RIE | 0 | Positive pressure | 0.4 | Čas dobave: Predvidoma 3 - 5 dni | 597,41 € | | |
| 102728RIE | 0 | Positive pressure | 1 | Čas dobave: Predvidoma 3 - 5 dni | 597,41 € | | |
| 102735RIE | 0 | Positive pressure | 60 | Čas dobave: Predvidoma 3 - 5 dni | 597,41 € | | |
| 102736RIE | 0 | Positive pressure | 100 | Čas dobave: Predvidoma 3 - 5 dni | 597,41 € | | |
| 102731RIE | 0 | Positive pressure | 10 | Čas dobave: Predvidoma 3 - 5 dni | 597,41 € | | |
| 102737RIE | 0 | Positive pressure | 160 | Čas dobave: Predvidoma 3 - 5 dni | 597,41 € | | |
| 102739RIE | 0 | Positive pressure | 400 | Čas dobave: Predvidoma 3 - 5 dni | 597,41 € | | |
| 102738RIE | 0 | Positive pressure | 250 | Čas dobave: Predvidoma 3 - 5 dni | 597,41 € | | |
| 102730RIE | 0 | Positive pressure | 6 | Čas dobave: Predvidoma 3 - 5 dni | 597,41 € | | |
| 102732RIE | 0 | Positive pressure | 16 | Čas dobave: Predvidoma 3 - 5 dni | 597,41 € | | |
| 102734RIE | 0 | Positive pressure | 40 | Čas dobave: Predvidoma 3 - 5 dni | 597,41 € | |
Opis
Electr. pressure transducer, general industrial applications, Non-linearity 0.25%, Meas. range 0-40 bar, G 1/2, CrNi steel 1.4571
Pressure transmitters, very high precision, in CrNi steel, for complex measurement tasks in the process industry as well as research and development.
Applications: Low temperature or outdoor applications, extreme shock loads and vibration levels, corrosive media in the chemical industry.
Compatible with all internationally established process connections.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Vrsta | S-20 |
| Ohišje | CrNi-steel 1.4571 |
| Min. temperatura medija [°C] | -30 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -30 |
| Max. sobna temperatura [°C] | 100 |
| Deli v kontaktu z medijem | CrNi-steel 1.4571 |
| izhodni signal | 4 - 20 mA, 2-wire |
| IP zaščita | IP 65 acc. to EN 60529 |
| Električni priključek | With right-angle connector acc. to DIN EN 175301-803 A |
| Operativna napetost | DC 8 ... 36 V |
| Nelinearnost | up to 0.25% of span |
| Merilno območje max. bar | 40 |
| Spodnja/Zgornja meja območja | Positive pressure |
