Elektronsko tlačno stikalo, digitalni, G 1/8 ET, 0 - 10 bar
SKU: 133158RIE
EAN: 4047322476485

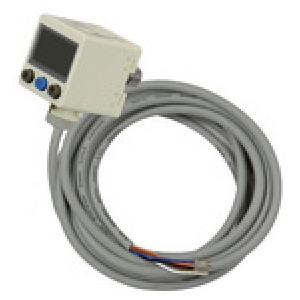

Electronic pressure switch with digital display, G 1/8 ET, 0 - 10 bar, 2 x NPN outputs + 1 x analog output 4 - 20 mA
Electronic pressure switch with digital display in stable plastic housing for monitoring and measuring pressures in dry, oil-free compressed air and non-toxic, non-aggressive gasses.
Areas of application: Pneumatics, machine tools, compressors, automation technology and in general machine construction.
Output signal: 2 x digital NPN or PNP, 1 x analogue 1 – 5 V or 4 - 20 mA
Selectable units: MPa, kgf/cm², bar, psi
Hysteresis adjustable. Menu guided setting using three large buttons and easy to read 2-colour digital LCD display.
Installation location selectable.
Obrestno financiranje
- 12,45 € x 12 mesecev
- 24,35 € x 6 mesecev
- 48,15 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | izhodni signal | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 133157RIE | 2 x NPN outputs + 1 x analog output 1 - 5 V | Čas dobave: Predvidoma 3 - 5 dni | 132,80 € |  | |
| 133159RIE | 2 x PNP outputs + 1 x analog output 1 - 5 V | Čas dobave: Predvidoma 3 - 5 dni | 132,80 € | | |
| 133160RIE | 2 x PNP outputs + 1 x analog output 4 - 20 mA | Čas dobave: Predvidoma 3 - 5 dni | 132,80 € | | |
| 133158RIE | 2 x NPN outputs + 1 x analog output 4 - 20 mA | Čas dobave: Predvidoma 3 - 5 dni | 132,80 € | |
Opis
Electronic pressure switch with digital display, G 1/8 ET, 0 - 10 bar, 2 x NPN outputs + 1 x analog output 4 - 20 mA
Electronic pressure switch with digital display in stable plastic housing for monitoring and measuring pressures in dry, oil-free compressed air and non-toxic, non-aggressive gasses.
Areas of application: Pneumatics, machine tools, compressors, automation technology and in general machine construction.
Output signal: 2 x digital NPN or PNP, 1 x analogue 1 – 5 V or 4 - 20 mA
Selectable units: MPa, kgf/cm², bar, psi
Hysteresis adjustable. Menu guided setting using three large buttons and easy to read 2-colour digital LCD display.
Installation location selectable.
Tehnični podatki in specifikacije
| Ohišje | Plastic |
| IP zaščita | IP 40 / IP 65 (with hose) |
| Max. sobna temperatura [°C] | 60 |
| Min. sobna temperatura [°C] | -10 |
| Električni priključek | 2 m cable, open cable ends |
| Procesni priključek | G 1/8 |
| izhodni signal | 2 x NPN outputs + 1 x analog output 4 - 20 mA |
| Deli v kontaktu z medijem | MSV |
| Merilno območje max. bar | 10 |
| Max. temperatura medija [°C] | 50 |
| Natančnost | ±2 % F.S. ± 1 digit |
| Napajanje | 12 - 24 V DC ± 10 % |
