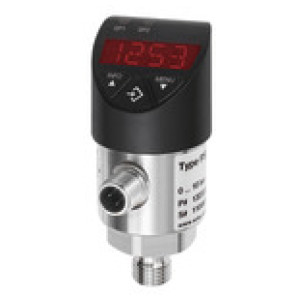

Elektronsko tlačno stikalo, digitalni, M12x1, G 1/4, 0-60 bar
SKU: 103081RIE
EAN: 14240428
Electr. pressure switch, Digital display, M12x1, 4-pole, Measuring material temp. -20°C to 85°C, G 1/4, Measurement range 0-60 bar
Electronic pressure switch with digital display, made of stainless steel, for monitoring and measuring pressures in liquids, gases or compressed air.
Applications: Machine tools, compressors and pumps, hydraulic and pneumatic systems, machinery in general, factory automation.
Customisable switching functions: Switching / switch-back point or window function, switching delay times, NO and NC functions, min. / max. memory. Password protection for maximum security.
The display and case can be turned 300° for mounting in any position.
Three large keys for intuitive operation with an easy-to-read display conforming to VDMA Standard 24574-1.
Optional on request: Pressure switch with additional analog signal 4 - 20 mA, DC 0 - 10 V and 5-pin plug.
Obrestno financiranje
- 10,33 € x 48 mesecev
- 13,20 € x 36 mesecev
- 18,97 € x 24 mesecev
- 36,31 € x 12 mesecev
- 71,02 € x 6 mesecev
- 140,47 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Merilno območje max. bar | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 103086RIE | 600 | Čas dobave: Predvidoma 3 - 5 dni | 388,34 € |  | |
| 103078RIE | 16 | Čas dobave: Predvidoma 3 - 5 dni | 388,34 € | | |
| 103077RIE | 10 | Čas dobave: Predvidoma 3 - 5 dni | 388,34 € | | |
| 103082RIE | 100 | Čas dobave: Predvidoma 3 - 5 dni | 388,34 € | | |
| 103084RIE | 250 | Čas dobave: Predvidoma 3 - 5 dni | 388,34 € | | |
| 103080RIE | 40 | Čas dobave: Predvidoma 3 - 5 dni | 388,34 € | | |
| 103073RIE | 1 | Čas dobave: Predvidoma 3 - 5 dni | 388,34 € | | |
| 103079RIE | 25 | Čas dobave: Predvidoma 3 - 5 dni | 388,34 € | | |
| 103076RIE | 6 | Čas dobave: Predvidoma 3 - 5 dni | 388,34 € | | |
| 103085RIE | 400 | Čas dobave: Predvidoma 3 - 5 dni | 388,34 € | | |
| 103074RIE | 2.5 | Čas dobave: Predvidoma 3 - 5 dni | 388,34 € | | |
| 103083RIE | 160 | Čas dobave: Predvidoma 3 - 5 dni | 388,34 € | | |
| 103075RIE | 4 | Čas dobave: Predvidoma 3 - 5 dni | 388,34 € | | |
| 103081RIE | 60 | Čas dobave: Predvidoma 3 - 5 dni | 388,34 € | |
Opis
Electr. pressure switch, Digital display, M12x1, 4-pole, Measuring material temp. -20°C to 85°C, G 1/4, Measurement range 0-60 bar
Electronic pressure switch with digital display, made of stainless steel, for monitoring and measuring pressures in liquids, gases or compressed air.
Applications: Machine tools, compressors and pumps, hydraulic and pneumatic systems, machinery in general, factory automation.
Customisable switching functions: Switching / switch-back point or window function, switching delay times, NO and NC functions, min. / max. memory. Password protection for maximum security.
The display and case can be turned 300° for mounting in any position.
Three large keys for intuitive operation with an easy-to-read display conforming to VDMA Standard 24574-1.
Optional on request: Pressure switch with additional analog signal 4 - 20 mA, DC 0 - 10 V and 5-pin plug.
Tehnični podatki in specifikacije
| Ohišje | CrNi steel |
| Povezava | G 1/4 |
| IP zaščita | IP 65 and IP 67 (M12x1) |
| Max. sobna temperatura [°C] | 80 |
| Min. sobna temperatura [°C] | -20 |
| Električni priključek | circular plug-in connector M12 x 1, 4-pin |
| Procesni priključek | G 1/4 |
| izhodni signal | 2 switching outputs |
| Deli v kontaktu z medijem | CrNi steel |
| Merilno območje max. bar | 60 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 85 |
| Natančnost | 1% of span |
| Napajanje | DC 15 - 35 V |
