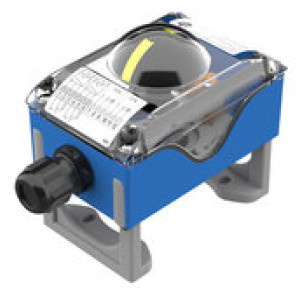

End position feedback PA6/PC, inductive sensor, 10-30V DC slika

* slike so simbolične

End position feedback PA6/PC, inductive sensor, 10-30V DC

SKU: 117247RIE
EAN: 4047322719964

End position feedback PA6/PC, inductive sensor PNP (NO), 10-30V DC, 0-200 mA, ambient temp. -25 °C to 80 °C

Robust and compact end position feedback with plastic housing.

- Actuator hole spacings 80x30mm or 130x30mm
- Height-adjustable assembly bridge for actuator shaft heights 20/30/40/50mm
- 3D position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam

Ni na zalogi
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Zaloga Cena Nakup Natisni
117247RIE
Ni na zalogi
? Povpraševanje Natisni

Opis

End position feedback PA6/PC, inductive sensor PNP (NO), 10-30V DC, 0-200 mA, ambient temp. -25 °C to 80 °C

Robust and compact end position feedback with plastic housing.

- Actuator hole spacings 80x30mm or 130x30mm
- Height-adjustable assembly bridge for actuator shaft heights 20/30/40/50mm
- 3D position indicator also visible from a distance
- Easy-to-adjust, self-locking trip cam

Tehnični podatki in specifikacije

Območje napetosti 10-30 V DC
Ohišje PA6/PC
Preklopna funkcija PNP (NO)
IP zaščita IP 66/67, acc. to DIN EN 60529
Kabelska uvodnica M20x1.5
Nominalna preklopna zmogljivost 0-200mA
Opis IS5001 - inductive sensor quadruple
Različica with inductive sensor
Min. sobna temperatura [°C] -25
Max. sobna temperatura [°C] 80
