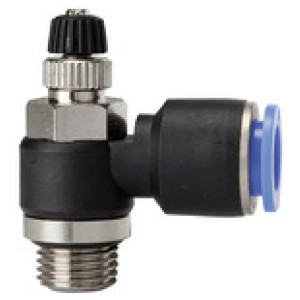

Enos. ventil Blue serija, dušilec zraka dohod plin, G 3/8
SKU: 109988RIE
EAN: 4047322201506

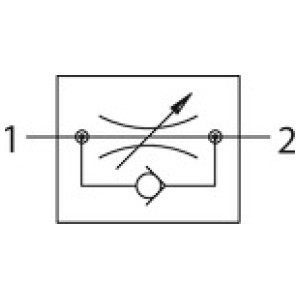

Throttle check valve »Blue Series«, Supply air throttle, G 3/8 o., for hose exterior Ø 8 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
14,36 €
Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Min. L2 [mm] | Max. L2 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
109986RIE | G 1/4 | 10 | 14 | 32.0 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,59 € | ||
109977RIE | M5 | 4 | 8 | 20.0 | 29.0 | 31.9 | Čas dobave: Predvidoma 3 - 5 dni | 6,76 € | ||
109992RIE | G 1/2 | 10 | 24 | 35.5 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 20,58 € | ||
109981RIE | G 1/8 | 8 | 10 | 25.3 | 37.8 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,36 € | ||
109979RIE | G 1/8 | 4 | 10 | 22.3 | 37.8 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,36 € | ||
109987RIE | G 1/4 | 12 | 14 | 32.0 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,59 € | ||
109983RIE | G 1/4 | 4 | 14 | 24.0 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,96 € | ||
109989RIE | G 3/8 | 10 | 19 | 32.5 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,75 € | ||
109984RIE | G 1/4 | 6 | 14 | 24.9 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,13 € | ||
109980RIE | G 1/8 | 6 | 10 | 22.9 | 37.8 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,36 € | ||
109991RIE | G 1/2 | 8 | 24 | 32.3 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 19,58 € | ||
109985RIE | G 1/4 | 8 | 14 | 28.4 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,13 € | ||
109982RIE | G 1/8 | 10 | 10 | 30.1 | 37.8 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,89 € | ||
109990RIE | G 3/8 | 12 | 19 | 35.3 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,75 € | ||
109993RIE | G 1/2 | 12 | 24 | 36.3 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 20,58 € | ||
109978RIE | M5 | 6 | 8 | 21.7 | 29.0 | 31.9 | Čas dobave: Predvidoma 3 - 5 dni | 6,76 € | ||
109988RIE | G 3/8 | 8 | 19 | 29.3 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,36 € |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
Serija | Blue series |
Max. working pressure short term [bar] | 15 |
Min. delovni tlak [bar] | -0.95 |
Max. delovni tlak [bar] | 10 |
Max. temperaturno območje [°C] | 80 |
Min. temperaturno območje [°C] | -20 |
Tesnilo | NBR |
Srednje | Compressed air, neutral and safe gases and liquids |
Priporočena cev | PU or PA (nylon) |
Rokav | Plastic |
Navoj | G 3/8 |
Za cevi O.D. [mm] | 8 |
L1 [mm] | 29.3 |
Min. L2 [mm] | 48.7 |
Max. L2 [mm] | 55.0 |
a/f [mm] | 19 |
Material | Plastic and nickel-plated brass |
