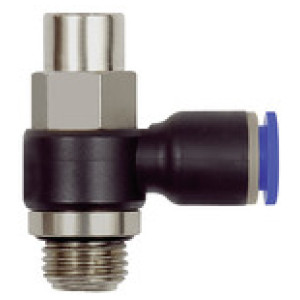

Enos. ventil Blue serija, dušilec zraka izhod, G 3/8
SKU: 110039RIE
EAN: 4047322387521
Throttle check valve »Blue Series«, Discharge throttle, G 3/8 o., for hose exterior Ø 10 mm, pmax short term 15barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave 3 - 5 dni
18,25 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Min. L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 110043RIE | G 1/2 | 12 | 24 | 36.5 | 49.0 | Čas dobave 3 - 5 dni | 24,46 € |  | |
| 110034RIE | G 1/4 | 6 | 14 | 25.0 | 38.3 | Čas dobave 3 - 5 dni | 12,05 € | | |
| 110033RIE | G 1/4 | 4 | 14 | 25.0 | 38.3 | Čas dobave 3 - 5 dni | 12,05 € | | |
| 110042RIE | G 1/2 | 10 | 24 | 34.5 | 49.0 | Čas dobave 3 - 5 dni | 24,46 € | | |
| 110032RIE | G 1/8 | 8 | 12 | 26.5 | 31.5 | Čas dobave 3 - 5 dni | 11,03 € | | |
| 110030RIE | G 1/8 | 4 | 12 | 23.0 | 31.5 | Čas dobave 3 - 5 dni | 10,66 € | | |
| 110029RIE | M5 | 6 | 8 | 21.5 | 23.0 | Čas dobave 3 - 5 dni | 10,15 € | | |
| 110037RIE | G 3/8 | 6 | 19 | 27.0 | 43.0 | Čas dobave 3 - 5 dni | 18,25 € | | |
| 110036RIE | G 1/4 | 10 | 14 | 31.0 | 38.3 | Čas dobave 3 - 5 dni | 15,32 € | | |
| 110038RIE | G 3/8 | 8 | 19 | 30.5 | 43.0 | Čas dobave 3 - 5 dni | 18,25 € | | |
| 110041RIE | G 1/2 | 8 | 24 | 33.0 | 49.0 | Čas dobave 3 - 5 dni | 24,46 € | | |
| 110040RIE | G 3/8 | 12 | 19 | 35.0 | 43.0 | Čas dobave 3 - 5 dni | 21,35 € | | |
| 110039RIE | G 3/8 | 10 | 19 | 32.0 | 43.0 | Čas dobave 3 - 5 dni | 18,25 € | | |
| 110031RIE | G 1/8 | 6 | 12 | 23.0 | 31.5 | Čas dobave 3 - 5 dni | 11,03 € | | |
| 110035RIE | G 1/4 | 8 | 14 | 29.0 | 38.3 | Čas dobave 3 - 5 dni | 12,05 € | | |
| 110028RIE | M5 | 4 | 8 | 20.0 | 23.0 | Čas dobave 3 - 5 dni | 9,65 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Aplikacije | Air, vacuum |
| Rokav | Plastic |
| Navoj | G 3/8 |
| Za cevi O.D. [mm] | 10 |
| L1 [mm] | 32.0 |
| Min. L2 [mm] | 43.0 |
| a/f [mm] | 19 |
| Material | Plastic and nickel-plated brass |
