* slike so simbolične
Enos. ventil Blue serija, dušilec zraka izhod, R 3/8
SKU: 110056RIE
EAN: 4047322201391

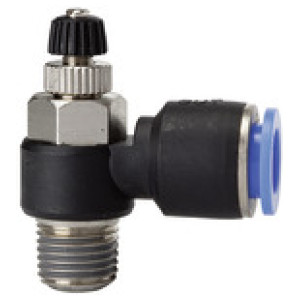

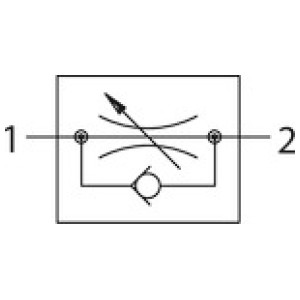

Throttle check valve »Blue Series«, Discharge throttle, R 3/8 o., for hose exterior Ø 12 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
13,32 €
Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Min. L2 [mm] | Max. L2 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
110045RIE | R 1/8 | 6 | 10 | 22.9 | 37.8 | 44.0 | Na zalogi | 6,10 € | ||
110051RIE | R 1/4 | 10 | 14 | 32.0 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,66 € | ||
110058RIE | R 1/2 | 8 | 24 | 32.3 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 18,48 € | ||
110048RIE | R 1/4 | 4 | 14 | 24.1 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,28 € | ||
110059RIE | R 1/2 | 10 | 24 | 35.5 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 19,13 € | ||
110057RIE | R 1/2 | 6 | 24 | 29.6 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 17,67 € | ||
110060RIE | R 1/2 | 12 | 24 | 36.3 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 19,13 € | ||
110049RIE | R 1/4 | 6 | 14 | 24.9 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,65 € | ||
110055RIE | R 3/8 | 10 | 19 | 32.5 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,32 € | ||
110047RIE | R 1/8 | 10 | 10 | 30.1 | 37.8 | 44.0 | Na zalogi | 6,70 € | ||
110050RIE | R 1/4 | 8 | 14 | 28.4 | 44.0 | 51.0 | Na zalogi | 7,65 € | ||
110054RIE | R 3/8 | 8 | 19 | 29.2 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,32 € | ||
110052RIE | R 1/4 | 12 | 14 | 32.0 | 44.0 | 51.0 | Na zalogi | 8,66 € | ||
110046RIE | R 1/8 | 8 | 10 | 24.8 | 37.8 | 44.0 | Na zalogi | 6,10 € | ||
110053RIE | R 3/8 | 6 | 19 | 26.6 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,30 € | ||
110044RIE | R 1/8 | 4 | 10 | 22.3 | 37.8 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,10 € | ||
110056RIE | R 3/8 | 12 | 19 | 35.3 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,32 € |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
Serija | Blue series |
Max. working pressure short term [bar] | 15 |
Min. delovni tlak [bar] | -0.95 |
Max. delovni tlak [bar] | 10 |
Max. temperaturno območje [°C] | 80 |
Min. temperaturno območje [°C] | -20 |
Tesnilo | NBR |
Srednje | Compressed air, neutral and safe gases and liquids |
Priporočena cev | PU or PA (nylon) |
Rokav | Plastic |
Navoj | R 3/8 |
Za cevi O.D. [mm] | 12 |
L1 [mm] | 35.3 |
Min. L2 [mm] | 48.7 |
Max. L2 [mm] | 55.0 |
a/f [mm] | 19 |
Material | Plastic and nickel-plated brass |
