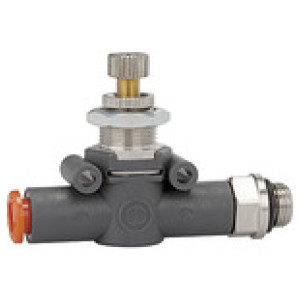

Enosmerni regulator tlaka, za cev-z navojem G1/8 za cev Ø8
SKU: 106727RIE
EAN: 9041510
Unidirectional flow control valve »lineonline«, Flow one-sided, Hose - thread, G 1/8, for hose Ø 8, Operating pressure max. 10 bar
Control the air intake and thus the speed of pneumatic units.

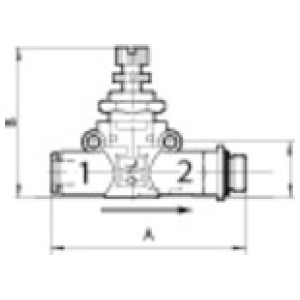

Šifra | Navoj | Za cevi Ø [mm] | I [mm] | B [mm] | A [mm] | Pretok pri 6,3 bara [Nl/min] | Izhodni pretok pri 6,3 bar [Nl/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|
106728RIE | G 1/4 | 6 | 18.7 | 49.0 | 66.2 | 450 | 550 | Čas dobave: Predvidoma 3 - 5 dni | 16,65 € | | |
106724RIE | M5 | 4 | 12.7 | 35.0 | 47.7 | 155 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 16,49 € | | |
106725RIE | G 1/8 | 4 | 12.7 | 35.0 | 51.6 | 155 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 16,49 € | | |
106730RIE | G 3/8 | 8 | 18.7 | 49.0 | 72.2 | 850 | 950 | Čas dobave: Predvidoma 3 - 5 dni | 23,02 € | | |
106726RIE | G 1/8 | 6 | 14.6 | 40.0 | 58.5 | 450 | 550 | Čas dobave: Predvidoma 3 - 5 dni | 16,49 € | | |
106729RIE | G 1/4 | 8 | 18.7 | 49.0 | 70.6 | 850 | 950 | Čas dobave: Predvidoma 3 - 5 dni | 20,14 € | | |
106727RIE | G 1/8 | 8 | 14.6 | 40.0 | 61.5 | 850 | 950 | Čas dobave: Predvidoma 3 - 5 dni | 19,37 € | |
Opis
Unidirectional flow control valve »lineonline«, Flow one-sided, Hose - thread, G 1/8, for hose Ø 8, Operating pressure max. 10 bar
Control the air intake and thus the speed of pneumatic units.
Tehnični podatki in specifikacije
Min. temperaturno območje [°C] | -20 |
Max. obratovalni tlak [bar] | 10 |
Max. temperaturno območje [°C] | 60 |
Tesnilo | NBR |
Telo | Technopolymer |
Notranji deli | Nickel-plated brass, brass, technopolymer, stainless steel |
Prilagoditev | Manual or screwdriver |

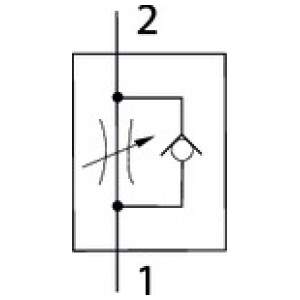

Pnevmatski simboli | On housing |
Navoj | G 1/8 |
Za cevi Ø [mm] | 8 |
A [mm] | 61.5 |
B [mm] | 40.0 |
I [mm] | 14.6 |
Pretok pri 6,3 bara [Nl/min] | 850 |
Izhodni pretok pri 6,3 bar [Nl/min] | 950 |
Ffunkcija | incoming air restriction |
