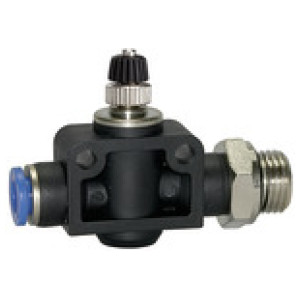

Enosmerni ventil »Blue serija«, Ravni, G 1/8 o.
SKU: 109947RIE
EAN: 4047322200806

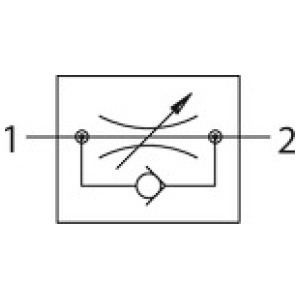

Throttle check valve »Blue Series«, Straight, G 1/8 o., for hose exterior Ø 4 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave 3 - 5 dni
12,86 €

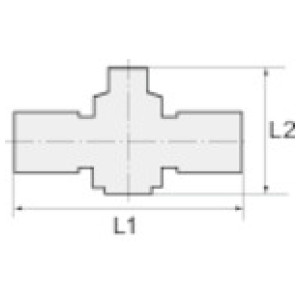

| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | Min. L2 [mm] | Max. L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 109954RIE | G 3/8 | 8 | 17 | 44.3 | 50.4 | 61.0 | Čas dobave 3 - 5 dni | 20,58 € |  | |
| 109950RIE | G 1/4 | 6 | 14 | 40.8 | 47.0 | 55.1 | Čas dobave 3 - 5 dni | 16,14 € | | |
| 109957RIE | G 1/2 | 10 | 19 | 48.3 | 54.5 | 76.0 | Čas dobave 3 - 5 dni | 30,27 € | | |
| 109955RIE | G 3/8 | 10 | 20 | 48.5 | 55.3 | 71.6 | Čas dobave 3 - 5 dni | 27,21 € | | |
| 109958RIE | G 1/2 | 12 | 24 | 51.5 | 56.8 | 85.9 | Čas dobave 3 - 5 dni | 33,05 € | | |
| 109947RIE | G 1/8 | 4 | 12 | 28.9 | 31.2 | 46.5 | Čas dobave 3 - 5 dni | 12,86 € | | |
| 109953RIE | G 1/4 | 12 | 21 | 50.3 | 55.3 | 80.6 | Čas dobave 3 - 5 dni | 30,95 € | | |
| 109949RIE | G 1/8 | 8 | 14 | 41.7 | 47.4 | 58.1 | Čas dobave 3 - 5 dni | 17,34 € | | |
| 109948RIE | G 1/8 | 6 | 14 | 41.1 | 46.8 | 53.7 | Čas dobave 3 - 5 dni | 14,07 € | | |
| 109956RIE | G 3/8 | 12 | 21 | 51.8 | 57.1 | 81.3 | Čas dobave 3 - 5 dni | 30,95 € | | |
| 109952RIE | G 1/4 | 10 | 17 | 47.4 | 54.0 | 70.3 | Čas dobave 3 - 5 dni | 27,21 € | | |
| 109951RIE | G 1/4 | 8 | 17 | 44.8 | 50.8 | 59.6 | Čas dobave 3 - 5 dni | 18,15 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | G 1/8 |
| Za cevi O.D. [mm] | 4 |
| L1 [mm] | 46.5 |
| Min. L2 [mm] | 28.9 |
| Max. L2 [mm] | 31.2 |
| a/f [mm] | 12 |
| Material | Plastic and nickel-plated brass |
