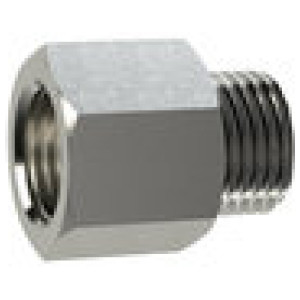

Extension piece, short, G 1/4 o., G 3/8 i., nickel-plated brass
SKU: 111506RIE
EAN: 4047322054430
Extension piece, short, G 1/4 o., G 3/8 i., AF 22, nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150 °C
Suitable for air, water, oil, steam, etc.
Čas dobave 3 - 5 dni
2,44 €

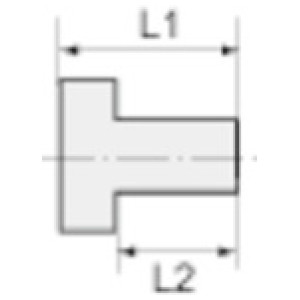

| Šifra | Notranji navoj | Zunanji navoj | L2 [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 111506RIE | G 3/8 | G 1/4 | 8.0 | 22 | 26.0 | Čas dobave 3 - 5 dni | 2,44 € |  | |
| 111508RIE | G 1/2 | G 3/8 | 9.0 | 24 | 29.5 | Čas dobave 3 - 5 dni | 3,73 € | | |
| 111504RIE | G 1/4 | G 1/8 | 6.0 | 17 | 21.5 | Čas dobave 3 - 5 dni | 1,54 € | | |
| 111505RIE | G 1/4 | G 1/4 | 8.0 | 17 | 22.5 | Čas dobave 3 - 5 dni | 1,60 € | | |
| 111502RIE | G 1/8 | M5 | 4.0 | 12 | 17.0 | Čas dobave 3 - 5 dni | 1,02 € | | |
| 111509RIE | G 1/2 | G 1/2 | 10.0 | 25 | 29.5 | Čas dobave 3 - 5 dni | 4,54 € | | |
| 111507RIE | G 3/8 | G 3/8 | 9.0 | 22 | 26.5 | Čas dobave 3 - 5 dni | 3,07 € | | |
| 111503RIE | G 1/8 | G 1/8 | 6.0 | 14 | 18.5 | Čas dobave 3 - 5 dni | 1,09 € | |
Opis
Extension piece, short, G 1/4 o., G 3/8 i., AF 22, nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150 °C
Suitable for air, water, oil, steam, etc.
Tehnični podatki in specifikacije
| Max. delovni tlak [bar] | 25 |
| Max. delovna temperatura [°C] | 150 |
| Material | Nickel-plated brass CW614N |
| Notranji navoj | G 3/8 |
| Zunanji navoj | G 1/4 |
| L1 [mm] | 26.0 |
| L2 [mm] | 8.0 |
| a/f [mm] | 22 |
