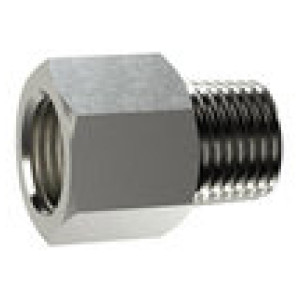

Extension piece, short, R 1/4 o., G 3/8 i., nickel-plated brass
SKU: 111514RIE
EAN: 4047322272896
Extension piece, short, R 1/4 o., G 3/8 i., AF 22, nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150 °C
Suitable for air, water, oil, steam, etc.
Čas dobave: Predvidoma 3 - 5 dni
3,44 €

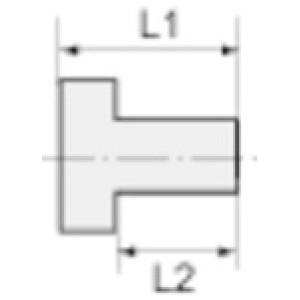

| Šifra | Notranji navoj | Zunanji navoj | L2 [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 111516RIE | G 3/8 | R 3/8 | 11.5 | 22 | 28.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,55 € |  | |
| 111510RIE | G 1/8 | R 1/8 | 8.0 | 14 | 20.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,37 € | | |
| 111515RIE | G 1/2 | R 1/4 | 11.0 | 24 | 29.0 | Na zalogi | 3,73 € | | |
| 111512RIE | G 3/8 | R 1/8 | 8.0 | 22 | 21.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,49 € | | |
| 111517RIE | G 1/2 | R 3/8 | 11.5 | 24 | 32.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,03 € | | |
| 111511RIE | G 1/4 | R 1/8 | 8.0 | 17 | 22.5 | Čas dobave: Predvidoma 3 - 5 dni | 1,89 € | | |
| 111513RIE | G 1/4 | R 1/4 | 11.0 | 17 | 25.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,95 € | | |
| 111518RIE | G 1/2 | R 1/2 | 14.0 | 24 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,62 € | | |
| 111519RIE | G 3/4 | R 1/2 | 14.0 | 32 | 35.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,13 € | | |
| 111514RIE | G 3/8 | R 1/4 | 11.0 | 22 | 28.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,44 € | |
Opis
Extension piece, short, R 1/4 o., G 3/8 i., AF 22, nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150 °C
Suitable for air, water, oil, steam, etc.
Tehnični podatki in specifikacije
| Max. delovni tlak [bar] | 25 |
| Max. delovna temperatura [°C] | 150 |
| Material | Nickel-plated brass CW614N |
| Notranji navoj | G 3/8 |
| Zunanji navoj | R 1/4 |
| L1 [mm] | 28.5 |
| L2 [mm] | 11.0 |
| a/f [mm] | 22 |
