* slike so simbolične

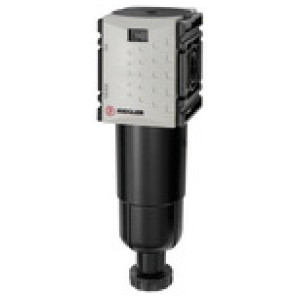

Filter »FUTURA-mali« Kov. pos. Vel. 0, G1/4, Pol avto.
SKU: 142441RIE
EAN: 4047322556668
Filter »FUTURA-mini« with metal container, 5 µm, Size 0, G 1/4, Input pressure 1.5 - 12 bar, Temp. -10 °C to 50 °C, Semi-automatic
Filters with excellent flow rates in modern design.
Čas dobave: Predvidoma 3 - 5 dni
46,76 €
| Šifra | Odtok kondenzata | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 142441RIE | Semi-automatic | 132.0 | Čas dobave: Predvidoma 3 - 5 dni | 46,76 € |  | |
| 142442RIE | Fully-automatic | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | 107,70 € | |
Opis
Filter »FUTURA-mini« with metal container, 5 µm, Size 0, G 1/4, Input pressure 1.5 - 12 bar, Temp. -10 °C to 50 °C, Semi-automatic
Filters with excellent flow rates in modern design.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 12 |
| Min. vhodni tlak [bar] | 1.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Plastic |
| Element filtra | Cellpor (PE) |
| Rang filtra [µm] | 5 |
| Pretok [l/min] | 1000 |
| Posoda | Metal container |

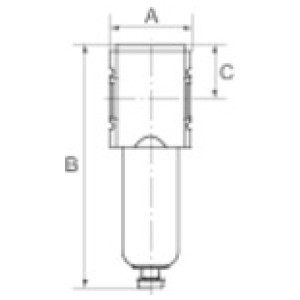

| A [mm] | 43.0 |
| B [mm] | 132.0 |
| C [mm] | 27.0 |
| Serija | FUTURA-mini |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
| Tesnilo | NBR |
| Odtok kondenzata | Semi-automatic |
