Filter»FUTURA«PC zbir.5 µmVel.4,G 3/4Pol avt.
SKU: 100149RIE
EAN: 4047322245692

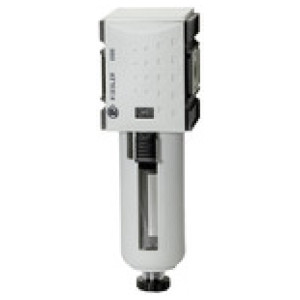

Filter »FUTURA« with PC container and protective cage, 5 µm, Size 4, G 3/4, 1.5 - 16 bar, Temp. -10 °C to 50 °C, Semi-automatic
Filters with excellent flow rates in modern design.
Čas dobave: Predvidoma 3 - 5 dni
165,71 €
ali od 15,53 € / mesec
Izračunaj obrok
Obrestno financiranje
- 15,53 € x 12 mesecev
- 30,39 € x 6 mesecev
- 60,10 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Odtok kondenzata | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100156RIE | G 1 | Fully-automatic | 4 | 58.0 | 85.0 | 264.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 233,02 € |  | |
| 100150RIE | G 1 | Semi-automatic | 4 | 58.0 | 85.0 | 247.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 165,71 € | | |
| 100146RIE | G 3/8 | Semi-automatic | 1 | 34.0 | 52.0 | 164.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 36,20 € | | |
| 100152RIE | G 3/8 | Fully-automatic | 1 | 34.0 | 52.0 | 179.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 95,78 € | | |
| 100154RIE | G 1/2 | Fully-automatic | 2 | 42.5 | 63.0 | 205.5 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 122,22 € | | |
| 100151RIE | G 1/4 | Fully-automatic | 1 | 34.0 | 52.0 | 179.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 95,78 € | | |
| 100153RIE | G 3/8 | Fully-automatic | 2 | 42.5 | 63.0 | 205.5 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 122,22 € | | |
| 100147RIE | G 3/8 | Semi-automatic | 2 | 42.5 | 63.0 | 189.5 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 67,93 € | | |
| 100148RIE | G 1/2 | Semi-automatic | 2 | 42.5 | 63.0 | 189.5 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 67,93 € | | |
| 100145RIE | G 1/4 | Semi-automatic | 1 | 34.0 | 52.0 | 164.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 36,20 € | | |
| 100155RIE | G 3/4 | Fully-automatic | 4 | 58.0 | 85.0 | 264.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 233,02 € | | |
| 100149RIE | G 3/4 | Semi-automatic | 4 | 58.0 | 85.0 | 247.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 165,71 € | |
Opis
Filter »FUTURA« with PC container and protective cage, 5 µm, Size 4, G 3/4, 1.5 - 16 bar, Temp. -10 °C to 50 °C, Semi-automatic
Filters with excellent flow rates in modern design.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 4 |
| Min. vhodni tlak [bar] | 1.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Element filtra | Cellpor (PE) |
| Rang filtra [µm] | 5 |
| Pretok [l/min] | 8000 |
| Posoda | Polycarbonate container with protective cage |
| A [mm] | 85.0 |
| B [mm] | 247.0 |
| C [mm] | 58.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
| Tesnilo | NBR |
| Odtok kondenzata | Semi-automatic |
