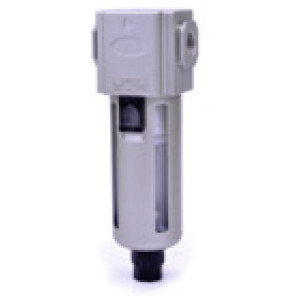

Filter »GA« PC zbir.Zašč. kletka, 5µm, Vel. 300, G1/2
SKU: 178458RIE
EAN: 4047322666558
Filter »GA« PC container, Protective cage, Mounting bracket, 5 µm, Size 300, G1/2, Input pres. max 10 bar, Working pres. 1.5-9 bar
Centrifugal separators with a sintered filter element.
Opis
Filter »GA« PC container, Protective cage, Mounting bracket, 5 µm, Size 300, G1/2, Input pres. max 10 bar, Working pres. 1.5-9 bar
Centrifugal separators with a sintered filter element.
Tehnični podatki in specifikacije
Navoj | G 1/2 |
Min. temperaturno območje [°C] | -5 |
Max. temperaturno območje [°C] | 70 |
Max. vhodni tlak [bar] | 10 |
Min. delovni tlak [bar] | 1.5 |
Max. delovni tlak [bar] | 9 |
Velikost | 300 |
Ohišje | Die-cast aluminium |
Tesnilo | NBR |
Rang filtra [µm] | 5 |
Posoda | Polycarbonate container with protective cage |
Pretok [l/min] | 3100 |
Odtok kondenzata | Semi-automatic |

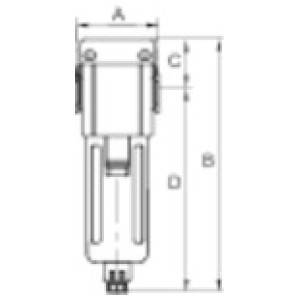

A [mm] | 62.5 |
B [mm] | 197.0 |
C [mm] | 39.0 |
D [mm] | 158.0 |
Serija | GA |
Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
