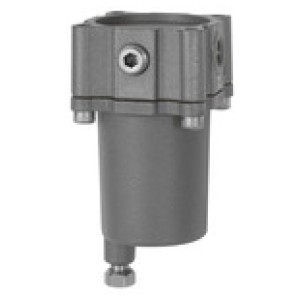

Filter iz nerjevečega jekla, 1.4401, 25 µm, Velikost 3, G 1/2
SKU: 137349RIE
EAN: 4047322513326
Stainless steel casting filter, 1.4401, 25 µm, Size 3, G 1/2, Input pressure max. 30 bar, Medium temperature max. 80 °C
Stainless steel filters for use in the chemical industry, mining, plant construction and
special machinery industries, pneumatics, etc.
Čas dobave: Predvidoma 3 - 5 dni
359,88 €
ali od 12,25 € / mesec
Izračunaj obrok
Obrestno financiranje
- 12,25 € x 36 mesecev
- 17,60 € x 24 mesecev
- 33,69 € x 12 mesecev
- 65,90 € x 6 mesecev
- 130,33 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Velikost | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 137349RIE | G 1/2 | 3 | 82.0 | 113.0 | 133.0 | 5355 | Čas dobave: Predvidoma 3 - 5 dni | 359,88 € |  | |
| 137352RIE | G 1 1/2 | 4 | 120.0 | 165.0 | 198.0 | 9910 | Čas dobave: Predvidoma 3 - 5 dni | 1.154,88 € | | |
| 137350RIE | G 3/4 | 3 | 82.0 | 113.0 | 133.0 | 6855 | Čas dobave: Predvidoma 3 - 5 dni | 359,88 € | | |
| 137347RIE | G 1/4 | 1 | 64.0 | 113.0 | 127.0 | 2010 | Čas dobave: Predvidoma 3 - 5 dni | 309,22 € | | |
| 137348RIE | G 3/8 | 1 | 64.0 | 113.0 | 127.0 | 2920 | Čas dobave: Predvidoma 3 - 5 dni | 309,22 € | | |
| 137351RIE | G 1 | 4 | 120.0 | 165.0 | 198.0 | 9910 | Čas dobave: Predvidoma 3 - 5 dni | 1.154,88 € | |
Opis
Stainless steel casting filter, 1.4401, 25 µm, Size 3, G 1/2, Input pressure max. 30 bar, Medium temperature max. 80 °C
Stainless steel filters for use in the chemical industry, mining, plant construction and
special machinery industries, pneumatics, etc.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 30 |
| Velikost | 3 |
| Ohišje | Stainless steel casting 1.4401 (AISI 316) |
| Tesnilo | NBR |
| Rang filtra [µm] | 25 |
| Max. temperatura medija [°C] | 80 |
| Max. sobna temperatura [°C] | 60 |
| Odtok kondenzata | Locking screw |
| Pretok [l/min] | 5355 |

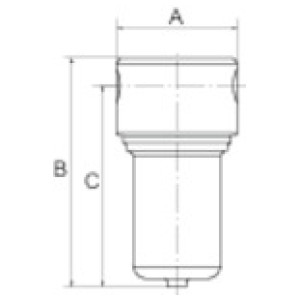

| A [mm] | 82.0 |
| B [mm] | 133.0 |
| C [mm] | 113.0 |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp ≤ 1 bar |
