* slike so simbolične

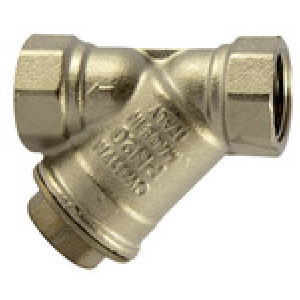

Filter nikljana medenina, G 1 1/2, DN 40, šrina mrežice 0.5 mm
SKU: 140999RIE
EAN: 4047322547253
Dirt strainer, nickel-plated brass, Sieve insert mesh width 0.5 mm, Operating temp. -20°C to 110°C, G 1 1/2, DN 40, PN max. 20 bar
Suitable for domestic water services, heating and air conditioning plants or compressed air systems. Not suitable for steam.
Čas dobave: Predvidoma 3 - 5 dni
60,80 €
ali od 11,17 € / mesec
Izračunaj obrok
Obrestno financiranje
- 11,17 € x 6 mesecev
- 22,09 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | DN | a/f 2 [mm] | a/f 1 [mm] | C [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 140998RIE | G 1 1/4 | 32 | 36 | 47 | 64.0 | 96.0 | Čas dobave: Predvidoma 3 - 5 dni | 46,62 € |  | |
| 137836RIE | G 3/8 | 10 | 20 | 21 | 40.0 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,16 € | | |
| 140994RIE | G 1/4 | 8 | 20 | 18 | 40.0 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,16 € | | |
| 140996RIE | G 3/4 | 20 | 27 | 31 | 48.0 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,44 € | | |
| 140997RIE | G 1 | 25 | 32 | 38 | 56.0 | 87.0 | Čas dobave: Predvidoma 3 - 5 dni | 31,46 € | | |
| 140999RIE | G 1 1/2 | 40 | 38 | 54 | 73.0 | 106.0 | Čas dobave: Predvidoma 3 - 5 dni | 60,80 € | | |
| 141000RIE | G 2 | 50 | 46 | 67 | 88.5 | 126.0 | Čas dobave: Predvidoma 3 - 5 dni | 101,41 € | | |
| 140995RIE | G 1/2 | 15 | 20 | 25 | 40.0 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,87 € | |
Opis
Dirt strainer, nickel-plated brass, Sieve insert mesh width 0.5 mm, Operating temp. -20°C to 110°C, G 1 1/2, DN 40, PN max. 20 bar
Suitable for domestic water services, heating and air conditioning plants or compressed air systems. Not suitable for steam.
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass |
| Max. obratovalni tlak [bar] | 20 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 110 |
| Navoj | G 1 1/2 |
| DN | 40 |
| Zaslon | Stainless steel |
| Tesnilo | NBR O-ring |
| Glava | Nickel-plated brass |
| Standardni navoj | G thread acc. to ISO 228-1, tolerance class B |
| L [mm] | 106.0 |
| C [mm] | 73.0 |
| a/f 1 [mm] | 54 |
| a/f 2 [mm] | 38 |
| Velikost mrežice [mm] | 0.5 |
