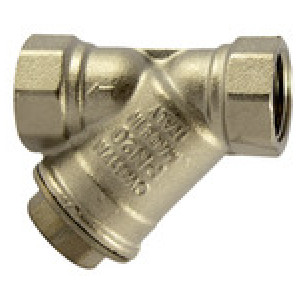

Filter nikljana medenina, G 1/2, DN 15, šrina mrežice 0.5 mm
SKU: 140995RIE
EAN: 4047322547215
Dirt strainer, nickel-plated brass, Sieve insert mesh width 0.5 mm, Operating temp. -20 °C to 110 °C, G 1/2, DN 15, PN max. 20 bar
Suitable for domestic water services, heating and air conditioning plants or compressed air systems. Not suitable for steam.

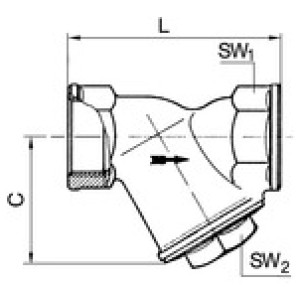

Šifra | Navoj | DN | a/f 2 [mm] | a/f 1 [mm] | C [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
140998RIE | G 1 1/4 | 32 | 36 | 47 | 64.0 | 96.0 | Čas dobave: Predvidoma 3 - 5 dni | 46,62 € | ||
137836RIE | G 3/8 | 10 | 20 | 21 | 40.0 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,16 € | ||
140994RIE | G 1/4 | 8 | 20 | 18 | 40.0 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,16 € | ||
140996RIE | G 3/4 | 20 | 27 | 31 | 48.0 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,44 € | ||
140997RIE | G 1 | 25 | 32 | 38 | 56.0 | 87.0 | Čas dobave: Predvidoma 3 - 5 dni | 31,46 € | ||
140999RIE | G 1 1/2 | 40 | 38 | 54 | 73.0 | 106.0 | Čas dobave: Predvidoma 3 - 5 dni | 60,80 € | ||
141000RIE | G 2 | 50 | 46 | 67 | 88.5 | 126.0 | Čas dobave: Predvidoma 3 - 5 dni | 101,41 € | ||
140995RIE | G 1/2 | 15 | 20 | 25 | 40.0 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,87 € |
Opis
Dirt strainer, nickel-plated brass, Sieve insert mesh width 0.5 mm, Operating temp. -20 °C to 110 °C, G 1/2, DN 15, PN max. 20 bar
Suitable for domestic water services, heating and air conditioning plants or compressed air systems. Not suitable for steam.
Tehnični podatki in specifikacije
Ohišje | Nickel-plated brass |
Max. obratovalni tlak [bar] | 20 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 110 |
Navoj | G 1/2 |
DN | 15 |
Zaslon | Stainless steel |
Tesnilo | NBR O-ring |
Glava | Nickel-plated brass |
Standardni navoj | G thread acc. to ISO 228-1, tolerance class B |
L [mm] | 58.0 |
C [mm] | 40.0 |
a/f 1 [mm] | 25 |
a/f 2 [mm] | 20 |
Velikost mrežice [mm] | 0.5 |
