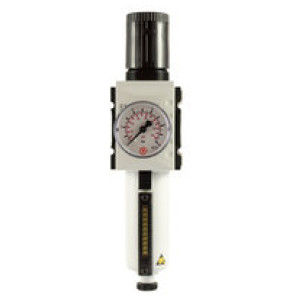

Filter reg.»FUTURA« Kov. Vel.2, G 1/2, 0.1-1 bar Pol avto. slika
Filter reg.»FUTURA« Kov. Vel.2, G 1/2, 0.1-1 bar Pol avto. slika
Filter reg.»FUTURA« Kov. Vel.2, G 1/2, 0.1-1 bar Pol avto. slika

* slike so simbolične

Filter reg.»FUTURA« Kov. Vel.2, G 1/2, 0.1-1 bar Pol avto.

SKU: 139490RIE
EAN: 4047322534192

Filter regulator »FUTURA«, with metal container, Viewing tube, Pressure gauge, 5 µm, Size 2, G 1/2, Control range 0.1-1 bar, Semi

Filter regulators with excellent flow rates in modern design.

The regulator knob can be latched and locked.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi

Opis

Filter regulator »FUTURA«, with metal container, Viewing tube, Pressure gauge, 5 µm, Size 2, G 1/2, Control range 0.1-1 bar, Semi

Filter regulators with excellent flow rates in modern design.

The regulator knob can be latched and locked.

Tehnični podatki in specifikacije

Navoj G 1/2
Max. vhodni tlak [bar] 16
Velikost 2
Min. vhodni tlak [bar] 1.5
Min. temperaturno območje [°C] -10
Max. temperaturno območje [°C] 50
Ohišje PA66 GF60
Priključni navoj Material: Die-cast zinc
Tesnilo NBR
Membrane NBR
Element filtra Cellpor (PE)
Rang filtra [µm] 5
Pretok [l/min] 5200
Odtok kondenzata Semi-automatic
Min. krmilno območje [bar] 0.1
Max. krmilno območje [bar] 1
Zaslon manometra max. [bar] 1.6
Posoda Metal container with viewing tube

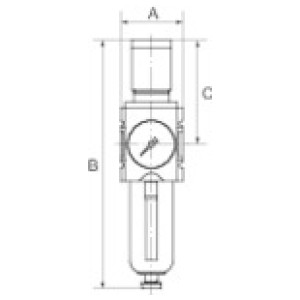

A [mm] 63.0
B [mm] 261.0
C [mm] 110.0
Serija FUTURA
Srednje Compressed air, neutral gases
Merjenje pretoka At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp= 1 bar
