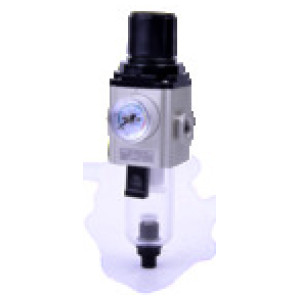

Filter reg. »GA-mali« 5 µm, Vel. 200, G 1/4, 1.5 - 9 bar
SKU: 178358RIE
EAN: 4047322666299
Filter regulator »GA-mini« PC container, Mounting bracket, 5 µm, Size 200, G1/4, Input press. max. 10 bar, Control range 1.5-9 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator. The pressure setting can be locked by pushing the button down.
Čas dobave: Predvidoma 3 - 5 dni
48,90 €
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 178358RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 48,90 € |  | |
| 178357RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | 48,90 € | |
Opis
Filter regulator »GA-mini« PC container, Mounting bracket, 5 µm, Size 200, G1/4, Input press. max. 10 bar, Control range 1.5-9 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator. The pressure setting can be locked by pushing the button down.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Min. temperaturno območje [°C] | -5 |
| Max. temperaturno območje [°C] | 70 |
| Max. vhodni tlak [bar] | 10 |
| Velikost | 200 |
| Ohišje | Die-cast aluminium |
| Tesnilo | NBR |
| Rang filtra [µm] | 5 |
| Vzmet pokrova motorja | POM |
| Min. krmilno območje [bar] | 1.5 |
| Max. krmilno območje [bar] | 9 |
| Posoda | Polycarbonate container |
| Pretok [l/min] | 1050 |
| Odtok kondenzata | Semi-automatic |

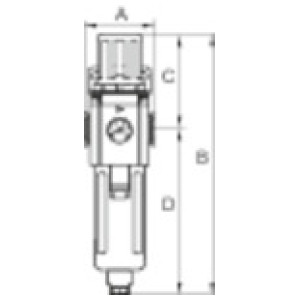

| A [mm] | 52.5 |
| B [mm] | 171.0 |
| C [mm] | 73.0 |
| D [mm] | 98.0 |
| Serija | GA-mini |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
