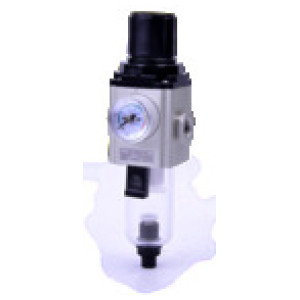

Filter reg. »GA-mali« 5 µm, Vel. 200, G 1/8, 1.5 - 9 bar

SKU: 178357RIE
EAN: 4047322666282

Filter regulator »GA-mini« PC container, Mounting bracket, 5 µm, Size 200, G1/8, Input press. max. 10 bar, Control range 1.5-9 bar

Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator. The pressure setting can be locked by pushing the button down.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Navoj Zaloga Cena Nakup Natisni
178358RIE G 1/4
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni
178357RIE G 1/8
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni

Opis

Filter regulator »GA-mini« PC container, Mounting bracket, 5 µm, Size 200, G1/8, Input press. max. 10 bar, Control range 1.5-9 bar

Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator. The pressure setting can be locked by pushing the button down.

Tehnični podatki in specifikacije

Navoj G 1/8
Min. temperaturno območje [°C] -5
Max. temperaturno območje [°C] 70
Max. vhodni tlak [bar] 10
Velikost 200
Ohišje Die-cast aluminium
Tesnilo NBR
Rang filtra [µm] 5
Vzmet pokrova motorja POM
Min. krmilno območje [bar] 1.5
Max. krmilno območje [bar] 9
Posoda Polycarbonate container
Pretok [l/min] 1050
Odtok kondenzata Semi-automatic

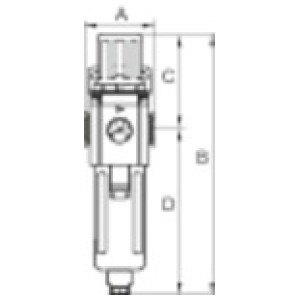

A [mm] 52.5
B [mm] 171.0
C [mm] 73.0
D [mm] 98.0
Serija GA-mini
Merjenje pretoka At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
